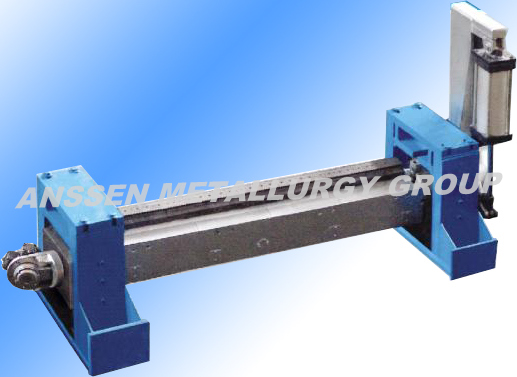

Sawtooth-shaped slab deburring machine

Sawtooth-shaped slab deburring machine is widely used in removing residual burr on the continuous casting billet after flame cutting. The equipment is installed with special material of sawtooth-shaped scraper, controled by hydraulic motor, and horizontal reciprocating motion to saw cutting the burr. Meanwhile, as the billets moving on the roller bed, the scraper can vertical cutting the burr. By horizontal and vertical combined motion, active and passive resultant action, greatly increase cutting force, enhancing the effect of deburring, and improving working life.

Dimension Design according to the speed of billet caster

Weight About 3 ton

Power source 380V 50HZ 7.8KW

Wind source 0.4~0.6 MPa

Roller spacing >1000mm

Roller speed high ≥30m/min

low ≥15m/min

speed 25mmin

Deburring temperature ≥600&#8451

Deburring time top 15s

bottom 5s
