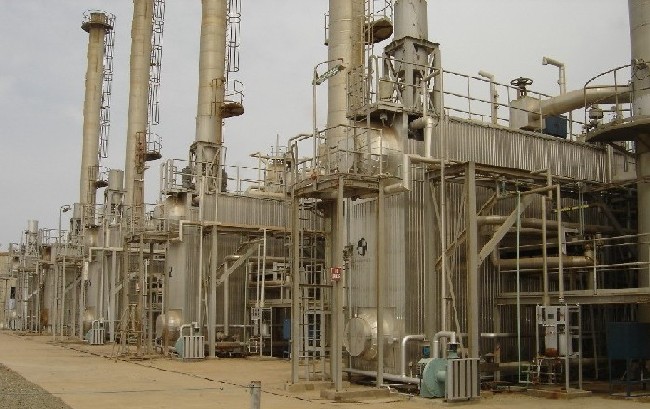

Saudi Arabia Boilers is a Boilers product. Key specs — Origin: Saudi Arabia.
Product Description
Specifications: Make: CMI Energy Services Qty:5 nos.
Year:2000 Boiler load at MCR:45.36 tons/hr Steam pressure:10.35 barg Design pressure:12.75 barg Steam temperature:185 deg C Thermal efficiency:92.8 percent Boiler dimensions:11,800mmL x 5,000mmW x 6,600mmH Economizer: Module type,3370mmL x 1530mmW x 1400mmH Water pre-heater: Pin exchanger type,7700mmL x 303mmW x 303mmH Burner data Make: Hamworthy Combustion Engineering Type: DF670 Grade of oil fuel: Heavy Oil pressure available:10 barg C.
V. Of oil:40.2 MJ/kg net No.
Of burner per boiler:1 Position of burner: Front wall Turndown per burner:5 to 1 Type of atomizer: Steam (constant differential) Oil viscosity at burner:15cSt (24 deg C) Oil pressure at burner:8.25 barg Atomizing air pressure:9.3 barg Boiler load:100 percent Oil per burner:2990/2858 kg/hr Excess air:10 percent Air temperature: Ambient (55 degC max) Register draught loss:17.6 mbar at 55 degC Type of igniter: Propane Electric supply:110-1-50 Ignition gas pressure:350mbar
