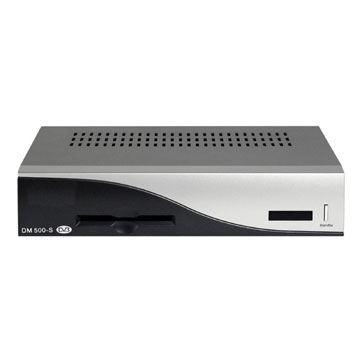

Satellite Receiver (DVB Dreambox DM500)

Features: 1) Like DM500S, Philips tuner 2) D500-S technical data a) 250 MHz PowerPC Processor (350 Mips) b) Linux Operating System c) 1 x Smartcard-Reader d) MPEG2 Hardware decoding e) Common available NIMs (DVB-S, DVB-C, DVB-T) f) V.24/RS232 Interface g) 10/100Mbit compatible Ethernet Interface h) 2 LED status i) unlimited channel lists for TV/Radio j) channel-change time k) full automatic service scan l) supports directly bouquet-lists m) supports EPG (electronic program guide) n) supports own videotext o) supports multiple LNB-Switching control (supports DiSEqC) p) fully adaptable OSD in many languages and skin-support q) S/PDIF Interface for digital bit stream out (AC-3) r) 1 x Scart-interfaces 3) DBS-tuner: a) Frequency range: 950 ~ 2,150MHz b) Signal level: - 65dBm ~ 25dBm c) Signal-to-noise level: 12dB max. d) DBS-tuner input connector F-type female e) Input Impedance 75ohm f) AFC: ±3MHz g) Demodulation shaped QPSK h) FEC viterbi and reed-solomon i) Vertebrate: 1/2, 2/3, 3/4, 5/6, 7/8, automatic assimilation j) Roll-off factor: 35 % k) Demultiplexing according ISO13818-1 4) Video decoder: a) Video compression: MPEG-2 and MPEG-1 compatible b) Video standard: PAL G / 25Hz c) Video formats 4:3 / 16:9 d) Footage 16:9, automatic assimilation for 16:9 TV-device (over Scart) e) Letterbox precolating for 4:3 TV-device 5) Audio decoder: a) Audio compression MPEG-1 & MPEG-2 Layer I and II b) Audio Mode Dual (main/sub), Stereo c) Frequency: 32kHz, 44.1kHz, 48kHz, 16kHz, 22.05kHz, 24kHz 6) Output analog: a) Output Level L/R 0.5Vss on 600ohm b) THD: >60dB (1kHz) c) Crosstalk: 7) Output digital: a) Output level: 0.5Vss on 75ohm b) Sampled data filtering 32kHz, 44.1kHz, 48kHz c) S/PDIF - output optical (AC3) 8) Video parameter: a) Input level FBAS 1Vss±0.3dB on 75ohm b) Teletext filter in conformity with ETS 300 472 standard 9) TV-scart: output: FBAS, RGB, S-VHS 10) Serielle Interface RS 232: a) Type: RS232 bidirectional b) Bitrate: 115.2kBit/s max. c) Plug connector SUB-D-9 d) Function: update of firmware 11) Ethernet: a) 10/100MBit compatible interface b) Function: update of firmware, connect to PC 12) LNB power and polarization: a) LNB current: 500mA max.; short-circuit-proof b) LNB voltage vertical: 11.5V at 400mA c) LNB voltage horizontal: 17.3V at 400mA d) LNB shut-off at standby-mode 13) Count of active satellite position: a) DiSEqC 1.0/1.2 SAT position / SAT option b) DiSEqC - rotor control 14) Power consumption: 15) Input voltage: DC 12V, alternating acurrent &plumsn;15% 16) Extern power supply: a) Input: 110 - 240V AC / 50 - 60Hz / 0.6A b) Output: 12V / 1A 17) Physical specifications: a) Ambient temperature: +15°C ~ +35°C b) Humidity: c) Dimensions (W x D x H): 195 x 130 x 40mm d) Weight: 0.6kg
