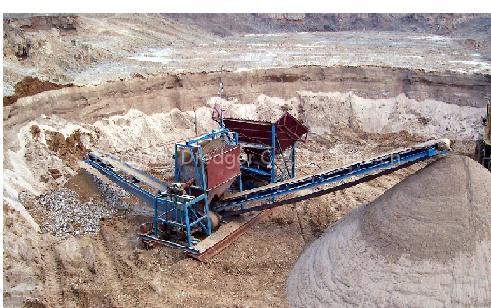

Sand screening machine

Sand screening machine other name is Sand screening ship on land.It’s divided into Drum-type ,vibrating type.

According to variety of segregation ,Drum-type sand screening machine is divided into 2 conveyors,3 conveyors,4conveyors,Vibrating type sand screening machine is divided into 2 floors,3floors,4floors.It is a sand & stone separator ,suitable working in dry channel, sand battlefield, construction site and Coalyard.

Power system is motor driving or diesel engines driving, according to feeder is divided into DW-SS-60,DW-SS-100 sand screening machine,Sand screening machine is composed by power,deceleration machine, main frame, feeder, separator, conveyer belt six parts.The working principle of sand screening machine :Untrimmed quarry sand is feeded to feeder by forklift truck, then across conveyor to separator ,separation sceen will make the Untrimmed quarry sand materials into requested particle size.the be crushed by conveyor .

Only need 1-2 people to operate the machine ,the machine’s structure is simple,affordable, easy to operateData:Model Total size Carrier length(m) Output of mixture/hour Method of abruption Power

DW-S-2 7.2m/2.4m/2.9m 7m/12m 60-100m3 2kinds 2sets

DW-S-3 8.3m/2.4m/3.2m 12m/7m/8m 60-100m3 3kinds 3sets

DW-S-4 10.5m/2.6m/3.5m 13m/7m/13m/7m 60-100m3 4kinds 3sets
