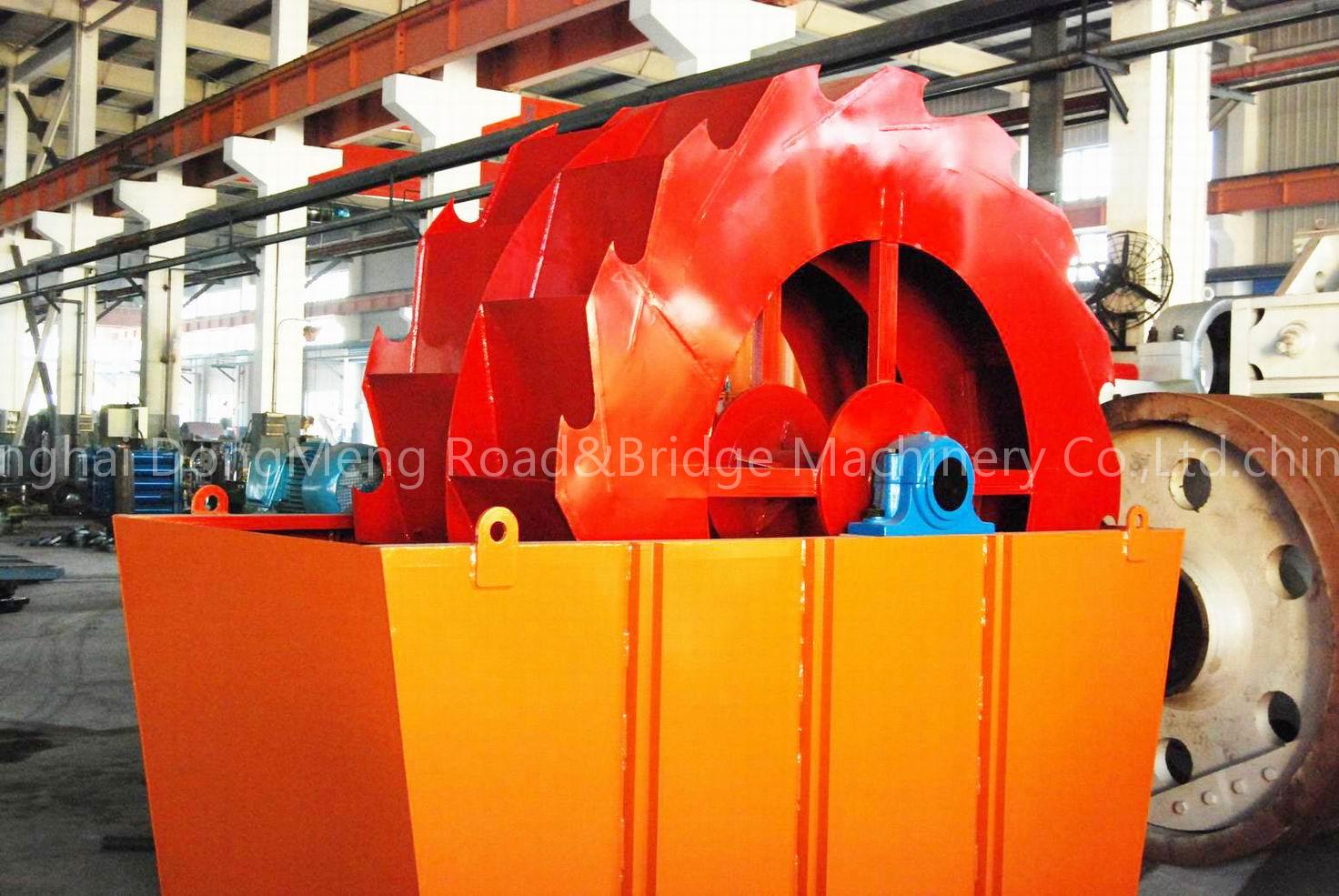

Sand Washing Plant
Specifications
- Brand
- DongMeng Machinery
- Origin
- Shanghai, China (Mainland)
Sand Washing Plant is a Mining Machinery product. Key specs — Brand: DongMeng Machinery; Origin: Shanghai, China (Mainland).
Product Description
Detailed Product Description
Sand Washing Plant,Sand Washer,Washing PlantThe sand washing plant with low operation cost,reducing cycle load and sealed by grease
DongMeng XSD series sand washing plant
1. Application of XSD sand washing plant, sand separator, washing plant
Sand washing plant is applied for washing applications in sand plant, mine, concrete batching plant, and industries like building materials production, transportation, chemistry, water conservancy, etc.
2. Special advantages of DongMeng XSD series Sand Washing Plant,Sand Washer,Washing Plant
A). Reliable quality certified by CE.
B). Highly effective of washing rate.
C). Less loss of fine aggregate and sand.
D). It is almost no wearing parts except the screen cloth.
3. Working principle of XSD sand washer, sand washing plant
Electric motor rotates impeller slowly through V-belt and reduction box. The sands rotate with the impeller and rub each other so that the impurities on the surface of the sands are scaled off. By adding water to form a powerful current, the impurities are removed from the sand washing plant.
4. Technical specification of XSD sand washing plant
| Model | XSD2610 | XSD3016 |
| Helix diameter(mm0 | 2600 | 3000 |
| Length of tub(mm) | 3220 | 3810 |
| Feed size(mm) | <=10 | <=10 |
| Capacity(t/h) | 50 | 80 |
| Speed of helix(r/min) | 0.8 | 0.8 |
| Motor power(kw) | 5.5 | 7.5 |
| Water consumption(t/h) | 4-4.5 | 16.3 |
| Weight(t) | 3.2 | 4.5 |
| Dimension(mm) | 3220X2125X2670 | 3400X2615X2800 |
