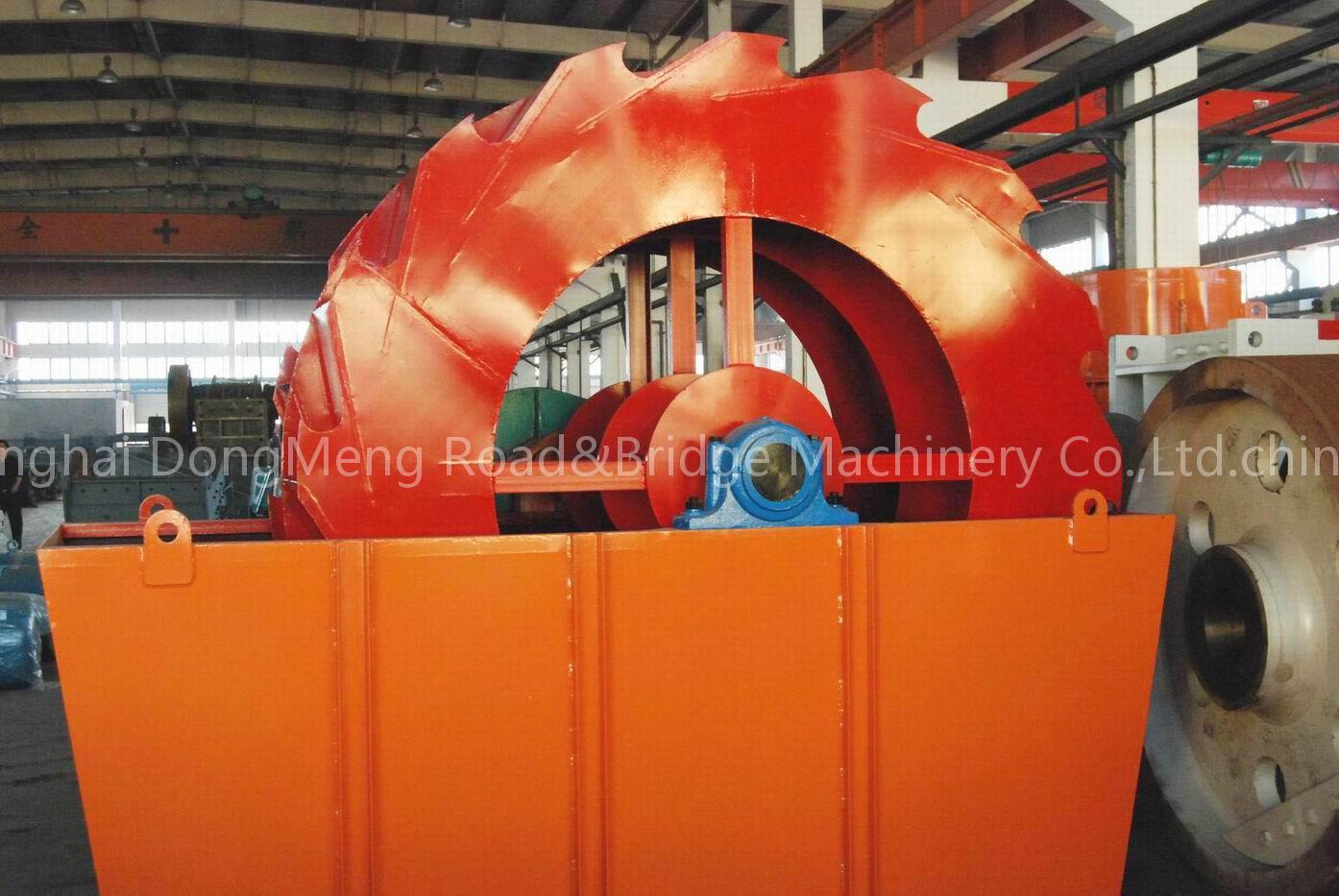

Sand Washing Machinery
Specifications
- Brand
- DongMeng Machinery
- Origin
- Shanghai, China (Mainland)
- Price Term
- FOB
Sand Washing Machinery is a Mining Machinery product. Key specs — Brand: DongMeng Machinery; Origin: Shanghai, China (Mainland); Price Term: FOB.
Product Description
Detailed Product Description
The sand washing machinery with low operation cost,reducing cycle load and sealed by grease
DongMeng XSD series sand washing machinery
1. Application of XSD sand washing machinery, sand separator, sand washing machinery
Sand washing machine is applied for washing applications in sand plant, mine, concrete batching plant, and industries like building materials production, transportation, chemistry, water conservancy, etc.
2. Special advantages of DongMeng XSD series sand washing machinery, sand cleaning, sand washing machinery
A). Reliable quality certified by CE.
B). Highly effective of washing rate.
C). Less loss of fine aggregate and sand.
D). It is almost no wearing parts except the screen cloth.
3. Working principle of XSD sand washer, sand washing machinery
Electric motor rotates impeller slowly through V-belt and reduction box. The sands rotate with the impeller and rub each other so that the impurities on the surface of the sands are scaled off. By adding water to form a powerful current, the impurities are removed from the sand washing machine.
4. Technical specification of XSD sand washing machinery
| Model | XSD2610 | XSD3016 |
| Helix diameter(mm0 | 2600 | 3000 |
| Length of tub(mm) | 3220 | 3810 |
| Feed size(mm) | <=10 | <=10 |
| Capacity(t/h) | 50 | 80 |
| Speed of helix(r/min) | 0.8 | 0.8 |
| Motor power(kw) | 5.5 | 7.5 |
| Water consumption(t/h) | 4-4.5 | 16.3 |
| Weight(t) | 3.2 | 4.5 |
| Dimension(mm) | 3220X2125X2670 | 3400X2615X2800 |
