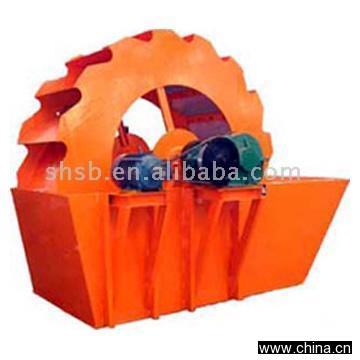

Sand Washing Machine

Model No.: Product Origin:China Brand Name: Price Terms: Payment Terms: Certification: Description:IntroductionThe efficient sand washing machine of XSD series is a kind of cleaning equipment of international advanced level for sand and slag pellets, developed on the basis of introducing foreign outstanding technology of the same kind of products.ApplicationSand washer is used to remove the dust in sand.

It aims at improving the quality of sand.

The materials include the required gravel in building-site, gravel factories, hydropower station and concrete dam site, post and electric pole factory, casting-70 sand, glass factory's quartz sand and refilling pressure is widely used for cleaning materials in the following industries: quarry, minerals, building materials, transportation, chemical industry, water conservancy and hydropower, cement mixture station and so on.Operating PrincipleSand washing machinery drives the impeller in the water groove to move like a circle transmitted by electric motor and decelerator, and then mixes, overturns, cleans and discharges the sand or slag pellets in the water groove.Features and Benefits:*Simple structure*Water saving*No pollution*Easy to maintain*Durability1.

It is of simple structure. The bearing device of impeller drive is separated from water and materials with water, to avoid in a large degree that the bearings are damaged by being soaked with water, sand or some polluted things.2. When it is used for cleaning sand in quarries, it has many advantages compared with the traditional spiral one.3.

There is little loss for medium-sized and fine sand and stone powder. The grade and the fineness of the sand for construction after being washed can be up to the national standards, such as "sand for construction" and "cobble and broken stones for construction".4. There are no other wearing parts except the screen mesh.5.

It features long service life and few times for maintenance.SpecificationModels:XSD2610Impeller Specification (mm) (DxW):2600x1000Impeller Speed (mm):1.178Capacity (t/h):20~50Max Feed Size (mm):10Water Consumption (mm):20~60Electric Motor Power (KW):5.5Decelerator Models:ZQ50-50-I-ZOverall Dimensions (LxWxH):3255x1982x2690Models:XSD2816Impeller Specification (mm) (DxW):2800x1600Impeller Speed (mm):1.177Capacity (t/h):30~60Max Feed Size (mm):10Water Consumption (mm):50~100Electric Motor Power (KW):11Decelerator Models:ZQ60-50-I-ZOverall Dimensions (LxWxH):3540x3000x2880Models:XSD3016Impeller Specification (mm) (DxW):3000x1600Impeller Speed (mm):1.179Capacity (t/h):50~120Max Feed Size (mm):10Water Consumption (mm):70~120Electric Motor Power (KW):15Decelerator Models:ZQ65-50-I-ZOverall Dimensions (LxWxH):3845x3000x3080Note: This specification is just reference, any changes are subject to the products.
