Listing ID#10214825
ModelLSX Series
CategoryMining Machinery

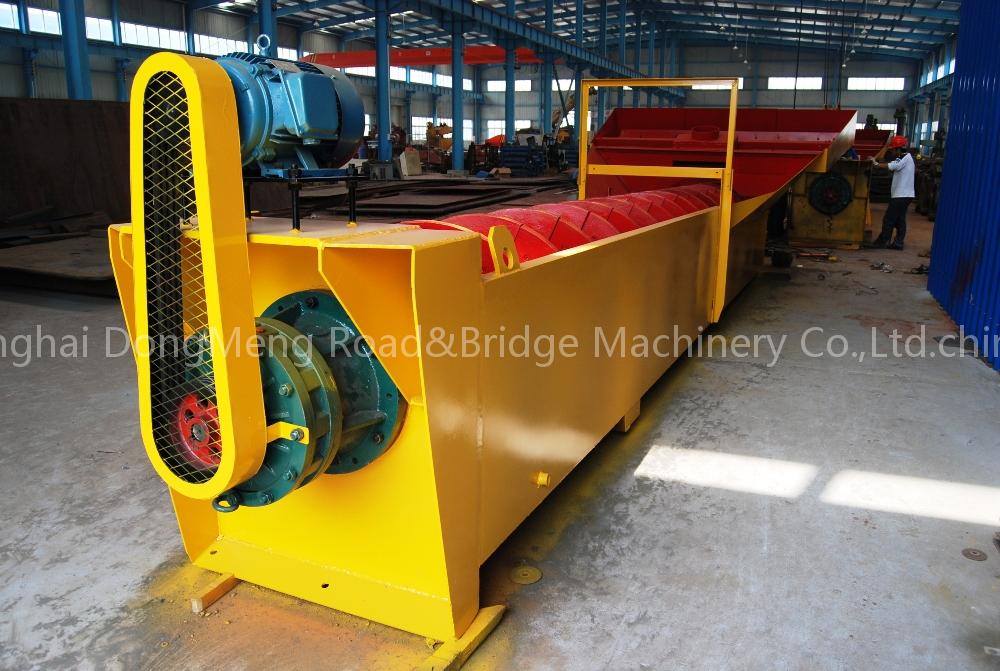

Sand Washer-LSX Series
Specifications
- Brand
- DongMeng Machinery
- Origin
- Shanghai, China (Mainland)
- Price Term
- FOB
Quick answer
Sand Washer-LSX Series is a Mining Machinery product. Key specs — Brand: DongMeng Machinery; Origin: Shanghai, China (Mainland); Price Term: FOB.
Product Description
Features of LSX / 2LSX Sand Washer
1. High cleaning;
2. Reasonable structure;
3. High capacity and low power consumption;
4. With the three functions of sand washing, grading and dehydration;
5. The sand washing machine is 15°tilted layout;
6. The spiral is driven by motor and decelerator to continuously rotate, and the sand or small ores can be stirred and washed.
Application of LSX / 2LSX Sand Washer
Being an important sand washing machine, it is widely used for sand washing, grading and dehydration in the fields of construction site, hydropower station and concrete dam sites, etc.
Technical Parameters of LSX / 2LSX Sand Washer
| Model | Spiral Diameter (mm) | Flume Length (mm) | Selected Size (mm) | Production Capacity (t/h) | Spiral Speed (r/min) | Water Consumption (t/h) | Motor Power (t) | Weight (t) | Overall Dimension (mm) |
| LSX915 | 915 | 7585 | ≤10 | 100 | 21 | 11 | 10-80 | 3.48 | 8500×2950×1930 |
| 2LSX915 | 915 | 7585 | ≤10 | 200 | 21 | 2×11 | 20-160 | 5.2 | 8420×3765×2030 |
| LSX1115 | 1115 | 9782 | ≤10 | 175 | 17 | 15 | 20-150 | 10.18 | 10970×3945×4720 |
| 2LSX1115 | 1115 | 9782 | ≤10 | 350 | 17 | 2×15 | 40-300 | 17.94 | 10970×5250×4720 |
