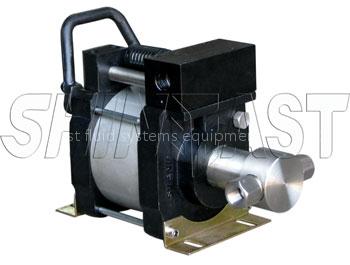

S Series high pressure piston pump
Specifications
- Brand
- SHINEEAST
- Origin
- JINAN,CHINA
- Price Term
- FOB
S Series high pressure piston pump is a Pneumatic Parts product. Key specs — Brand: SHINEEAST; Origin: JINAN,CHINA; Price Term: FOB.
Product Description
Pressure range:7.2~192Mpa
Nine pressure ratios available
Best price,high quality
ISO9001:2008
S series air driven liquid pumps are high pressure reciprocating plunger pumps of single acting,single air drive head model. They are compact and lightweight for simple installation in both static and portable applications. Air drive pressure from 1bar(14.5 psi) to 8bar(116 psi) maximum. Operating pressure up to 1,920 bar(27,840 psi).
Key features
- One model available in 9 ratios
- Compatibility with a variety of liquids
- No electricity required and explosion proof
- Aluminum bodies and wetted materials of carbon steel or stainless steel
- High quality seals, long service life available
- Rustproof and beautiful generous in blue colors with oxidation treatment applying to the aluminum components
- Easy to install in both static and portable applications.Reliable operation and maintenance
- Wide range of pressure ratios meeting with different requirements
- All S pumps come standard with side inlet
Technical parameters
Type | Pressure Ratio | MAX Outlet Pressure(bar)* | Connection Inlet A | Connection Outletlet B | MAX Flow (L/min) |
S9 | 9:1 | 72 | 3/4" | 1/2" | 16.95 |
S17 | 17:1 | 136 | 1/2" | 3/8" | 9.53 |
S25 | 25:1 | 200 | 1/2" | 3/8" | 6.62 |
S39 | 39:1 | 312 | 1/2" | 3/8" | 6.10 |
S60 | 60:1 | 480 | 1/2" | 3/8" | 2.71 |
S80 | 80:1 | 640 | 1/2" | 3/8" | 2.07 |
S108 | 108:1 | 864 | 1/2" | 3/8" | 1.52 |
S150 | 150:1 | 1200 | 1/2" | 3/8" | 1.06 |
S240 | 240:1 | 1920 | 1/4" | 1/4" | 0.67 |
