Listing ID#10211622
ModelSZ-200
CategoryMining Machinery
Quick answer

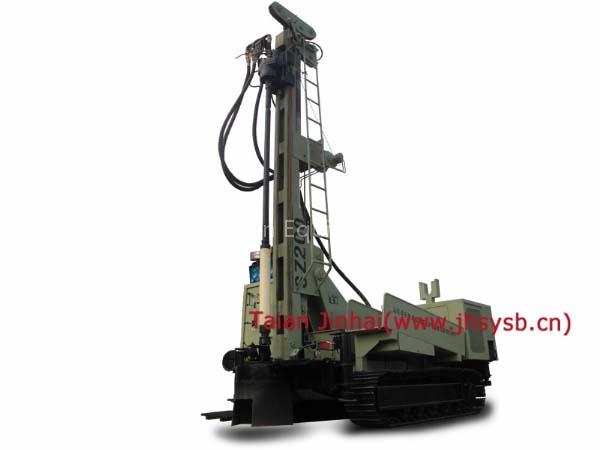

SZ-200 DTH drill rig is a Mining Machinery product. Key specs — Origin: CHINA; Price Term: FOB.
Product Description
| Tech parameter | 　 |
| Drill hole diameter(mm) | 127-254 |
| Drill hole depth(m) | 213 |
| Working air pressure(Mpa) | 1.05-2.46 |
| Air consumption(m3/min) | 16-30 |
| Drill rod length(m) | 3 |
| Drill rod diameter(mm) | 76 |
| Dimension (mm) | 5800×2040×3200 |
| Climb ability (°) | 25 |
| Travel speed(Km/h) | 0-2.5 |
| Weight (t) | 8 |
| master volume system | 　 |
| Lifting ability(N) | 3400 |
| Add speed(m/min) | 50 |
| Remove speed(m/min) | 96 |
| Feed system | 　 |
| Axial pressure(N) | 40820 |
| Lifting ability(N) | 68040 |
| Rotate torque (Nm) | 3400 |
| Rotate speed | 0-130 |
