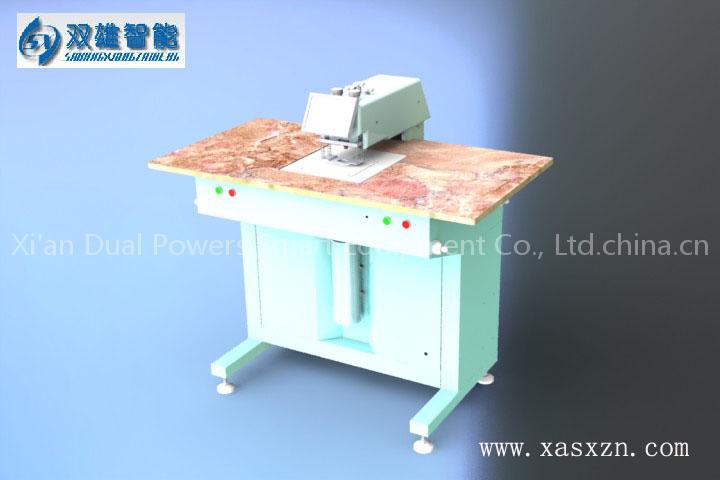

SX-02 Soft Board Automatic Punching Machine

SX-02 Soft Board Automatic Punching Machine

Hi-T: High Techlogy
Hi-Q: High Quality
Hi-E: High Efficiency
Hi-S: Knight Service
HP : High Performance
We can manufacture products according to your specifications.
PCB punching machinery, ours are the best!

Features:

1. Adopt windows XP operating system, with powerful function, fast and smart. Automatic image identification, automatic punching, standard configuration 8.0 (special configuration 10.4) inch colored industrial display large screen target display without hurting eyes.

2. Fast and automatic punching 0.35s/hole, 3-6 holes can be punched for one time.

3. Front and back light sources, precisely identify various FPC, film, membrane switch and diazo film material, etc.

4. Advanced vacuum chuck air absorption, low vibration, low noise.

5. When the workpiece enters the computer control scope, the equipment will automatically position and lock target, punch various circle holes and automatically count to make the processing more precise.

6. Imported granite working table, never worn.

7. Main component adopts Japanese and Taiwan imported component, which is more precise.

Specifications:

* Punching diameter is φ0.6mm-φ5.5mm.

* Punching thickness: 0.05mm-1.20mm (can reach 2.00mm according to the materials)

* Maximum pouching force: 100kg (can reach 200kg for customization)

* Positioning error is less than 0.015mm.

* Dimension (L*W*H) :1000*800*1150mm.

* Maximum processing board 600mm*600mm.

* Computer control system life-long free upgrading.

* Net weight 190kg, gross weight 220kg.

* Voltage AC200V-240V , power consumption 0.35kw.
