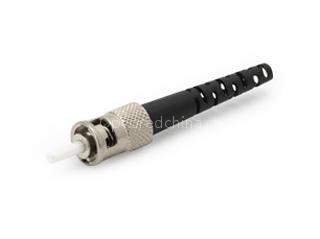

ST Connector(Fiber Optic)
Specifications
- Origin
- ShenZhen, China Fiber Optic
ST Connector(Fiber Optic) is a Fiber Optic Equipment product. Key specs — Origin: ShenZhen, China Fiber Optic.
Product Description
Applications: Local Area Networks (LANs) Data Processing Networks Premise Installations Instrumentation Features: Bayonet style housing for easy termination Epoxy and epoxy free versions Low insertion and back reflection loss Good exchangeability Good durability High temperature stability Standard: Telcordia GR-326-CORE ST Connnector Specification
Item SM MM
Insertion Loss Standard type 0.1dB Typical Standard type 0.2dB Typical
Return Loss ≥55dB Typical(PC) ≥30dB (PC)
Durability ≤0.1dB typical change, 1000 mating ≤0.1dB typical change, 1000 mating
Operating Temperature -40ºC to +75ºC -40ºC to +75ºC
Storage Temperature -40ºC to +75ºC -40ºC to +75ºC
Ferrule Hole Sizes (Custom sizes available) 125μm
