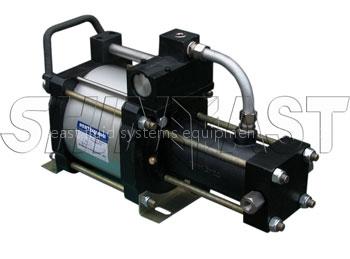

STA Series Gas Booster

Air Driven Gas Booster
Rugged,efficient
Pressure range:1.6~80Mpa
Seven pressure ratios available
Best price,high quality
Air driven gas boosters are high pressure reciprocating pumps used for gases boosting,driven of compressed shop air. STA Series boosters are single acting, single air head driven type.(Except Model STA02 and are double acting models).They have to be prepressurized at the inlet port so as to meet with the outlet pressure requirements,which value will be variable based on the permitted maximum outlet pressure. STA series gas boosters are suitable for the oil free compression of air and Industrial gases like Nitrogen, Helium as well as flammable and risk gases like hydrogen ,oxygen and natural gas.Air drive pressure from 1bar(14.5psi.) to 8bar(116psi.). Provide for operating pressures up to 80Mpa.

Key features

• Double action for effective operation (Model STA02 and STA05)
• No electricity required. Safe operation, ex-proof
• More appropriate ratios for meeting higher flowrates and faster fill times
• No airline lubricator required
• Hydrocarbon free-seperation between air drive and gas booster sections
• Suitable for most gases
• Built-in cooling
• High quality seals, long life service available
• All components in contact with the gas are made of aluminium or resp. stainless steel
• Wide range of models. There are nine models for your option
• Standard and custom systems available

Applications

• Mining,fire&safety
• Aircraft ground support
• Automotive air bag vessel filling
• Power generation
• Injection moulding
• Accumulator charging
• Supply for isolating gas systems
• Gas proof testing
• Hydrostatic and Burst Pressure testing for valves,pipes and tubing, pressure vessels and air craft components,etc.
• Safety valve adjusting

Technical parameters

Type	Pressure ratio	Min. gas inlet pressure PA (bar)	Max.gas inlet pressure PA (bar)	Max.gas oulet pressure PB (bar)	Formula to Calculate gas oulet pressure PB	Connection Gas Inlet / Gas outlet	Max. flow at air drive pressure of 6bar (L/min)
STA02	21	1.7	16	16	2X PL	ZG1/2/ ZG1/2	824(at PAof 6 bar )
STA05	51	3.5	40	40	5XPL	ZG1/2/ ZG1/2	380(at PAof 6 bar )
STA10	101	5.5	80	80	10XPL	ZG1/4/ ZG1/4	196(at PAof 20 bar )
STA25	251	10	200	200	25XPL	ZG1/4/ ZG1/4	81(at PA of 20 bar )
STA40	401	15	320	320	40XPL	ZG1/4/ ZG1/4	49(at PA of 20 bar )
STA60	601	25	480	480	60XPL	ZG1/4/ ZG1/4	61(at PAof 40 bar )
STA100	1001	35	800	800	100XPL	ZG1/4/ ZG1/4	39(at PA of 40 bar )

















































Note: PL: air drive pressure PA: gas inlet pressure PB: gas outlet pressure



Please consult us for printable performance charts for STA series boosters sized to your specific application parameters.
