Listing ID#10096323
ModelSSF700
CategoryOther Plastic & Rubber Machinery

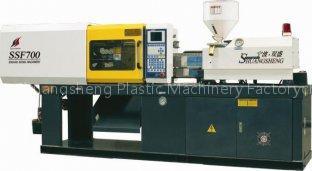

SSF700 plastic injection molding machine
Specifications
- Origin
- China
- Price Term
- FOB
Quick answer
SSF700 plastic injection molding machine is a Other Plastic & Rubber Machinery product. Key specs — Origin: China; Price Term: FOB.
Product Description
Delivery Time:40days
| Parameters of SSF700 plastic machine | |||
| Parameter | Unit | Parameter Value (SSF700) | |
| Screw diameter | mm | A | B |
| 34 | 36 | ||
| Screw L/D ratio | L/D | 18.8 | 17.7 |
| shot volumn (theoretical) | Cm3 | 113 | 127 |
| injection weight(PS) | g | 103 | 115 |
| plasticizing capacity | g/s | 11.6 | 13 |
| injection rate | g/s | 86 | 96 |
| injection pressure | Mpa | 171 | 153 |
| screw speed | rmp | 180 | |
| clamp force | KN | 700 | |
| open stroke | mm | 270 | |
| space between bars (W*H) | mm | 315*300 | |
| max mould height | mm | 320 | |
| min mould height | mm | 150 | |
| ejector stroke | mm | 80 | |
| ejector force | KN | 27 | |
| ejector number | PC | 1 | |
| mould align diameter | mm | 100 | |
| max pump pressure | Mpa | 16 | |
| pump motor power | KW | 7.5 | |
| heating power | KW | 5.1 | |
| machine dimension | m | 3.6*1.2*1.65 | |
| machine weight | T | 2.2 | |
| hopper capacity | Kg | 20 | |
| oil tank capacity | L | 130 | |
