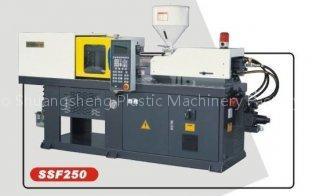

SSF250 plastic injection molding machine
Listing ID#10212017
ModelSSF250
CategoryAgriculture
Agriculture

SSF250 plastic injection molding machine

Specifications

Origin
China
Price Term
FOB
Request Quote
Quick answer

SSF250 plastic injection molding machine is a Agriculture product. Key specs — Origin: China; Price Term: FOB.

Product Description

Delivery Time:40days

Parameters of SSF250 plastic machine
Parameter Unit Parameter Value (SSF250)
Screw diameter  mm A B
22 25
Screw L/D ratio L/D 17.7 15.5
shot volumn (theoretical) Cm3 30 38
injection weight(PS) g 27 34
plasticizing capacity g/s 2.6 3.3
injection rate g/s 25 32
injection pressure Mpa 185 143
screw speed rmp 165
clamp force KN 250
open stroke mm 150
space between bars (W*H) mm 240*190
max mould height mm 220
min mould height mm 80
ejector stroke mm 40
ejector force KN 13
ejector number PC 1
mould align diameter mm 55
max pump pressure Mpa 14
pump motor power KW 3
heating power KW 2.5
machine dimension m 2.75*0.86*1.35
machine weight T 1
hopper capacity Kg 8.5
oil tank capacity L 85
