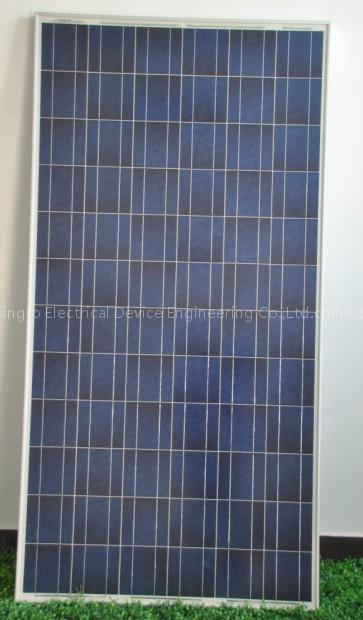

SOLAR MODULE/PANEL/SOLAR POWER SYSTEM
Specifications
- Brand
- Singfo
- Origin
- CHINA,DONG GUAN CITY
- Price Term
- FOB
SOLAR MODULE/PANEL/SOLAR POWER SYSTEM is a Solar Panels product. Key specs — Brand: Singfo; Origin: CHINA,DONG GUAN CITY; Price Term: FOB.
Product Description
Lifespan: 25 to 30-year Famous and grade a solar cell with high conversion efficiency Sealed junction box with waterproof, cabling and connectors Anti-reflection cover glass delivers more energy and aluminum frame Resistant to atmospheric exposure and effects of laminating Solar module type: mono/polycrystalline Power: 280W (maximum) Power tolerance: ± 3% Voltage at p maximum: 36.4V Current at p maximum: 7.70A Open-circuit voltage: 44.5V Short-circuit voltage: 8.28A System voltage: 1,000V (IEC), 600V (UL) (maximum) Cell efficiency: 16.2% Module efficiency: 14.4% Number and type of cells: 72 pieces Multi-crystalline silicon (6 x 12) No of by pass diodes (pieces): 3 Series fuse (A): 15A (maximum) Temperature coefficient of Voc: -0.34%/degrees Celsius Temperature coefficient of Isc: 0.02%/degrees Celsius Nominal operating cell temperature: 47 ±2 degrees Celsius <small>Disclaimer: All trademarks shown here are for reference purposes only.
