SMD Crystal Units is a Resonators product. Key specs — Origin: China (Mainland).
Product Description
Model No.:SMD Crystal 4*2.5 Product
Origin:China Brand
Name:
Price Terms:
Payment Terms:
Certification: Description:

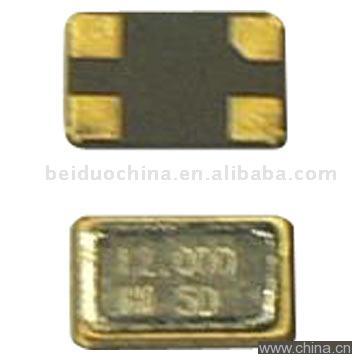

Product Name: SMD Crystal Units
Model Number: SMD Crystal 4*2.5
Place of Origin: China
Features: 1) 4 x 2.5mm SMD crystal resonator with frequency 12.000MHz to 40.000MHz 2) Standard frequency: 12MHz, 13MHz, 16MHz and 26MHz 3)
Application: Bluetooth handsfree kits, Bluetooth printers 4) Frequency tolerance: ±10ppm 5) Stability: ±10ppm 6) Load capacitance: 9pF, 10pF and 12pF 7) Motional resistance: 60 ohms maximum 8) Operating temp: -40 to +85°C
