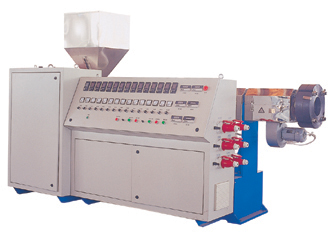

Name: SJ series single screw plastic extruder
Brand: Highbank

Application
The machine is mainly used in extruding soft and hard thermoplastics, such as polyviyl chloride (PVC), polyethylene and others. It is used with relevnt auxiliary machine (including shaping machine head) to produce several kinds of plastic products, for example: film, pipe, rod, plate, thread, cable insulating layer, hollow product. It is also used for prilling.
The machine has advantages, such as advanced design, high output, good plasticfication, low energy consumption, involute gear transmission, low noise, steady operation, large loading, long life and so on.

Product Name	Screw diameter (mm)	L/D	Motor power kW	output Torque(N.M)	Screw speed (r/min)	Max output (kg/h)
SJ25/25	25	25:1	1.5	175	100	3.4
SJ30/25	30	25:1	5.5	410	125	12.5
SJ45/25	45	25:1	7.5	580	100	20
SJ45/30A	45	30:1	15	1000	145	40
SJ45/30C	45	30:1	30	1600	185	120
SJ65/25	65	25:1	22	1500	100	60
SJ65/30	65	30:1	30	3600	105	80
SJ65/30	65	30:1	45	4800	120	120
SJ75/32	75	32:1	90	7200	120	350
SJ90/25	90	25:1	55	4400	120	150
SJ90/30	90	30:1	90	9200	94	250
SJ90/32	90	32:1	160	13000	120	500
SJ120/25	120	25:1	90	9200	94	350
SJ120/30	120	30:1	110	16000	94	350
SJ120/33	120	33:1	250	25000	94	800
SJ150/25	150	25:1	110	35000	40	320
SJ150/30	150	30:1	132	36000	50	350
SJ150/34	150	34:1	315	32000	75	1100
SJ200/25	200	25:1	160	50000	30	500
SJ200/30	200	30:1	200	60000	40	550
SJ200/34	200	34:1	400	55000	75	1500
