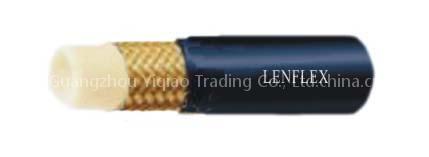

SINGLE STEEL WIRE BRAIDED RESIN HOSE SAE100 R7
Specifications
- Brand
- LENFLEX
- Origin
- CHINA
Quick answer
SINGLE STEEL WIRE BRAIDED RESIN HOSE SAE100 R7 is a Lighting Bulbs & Tubes product. Key specs — Brand: LENFLEX; Origin: CHINA.
Product Description
DESCRIPTIONS OF THE SINGLE STEEL WIRE BRAIDED RESIN HOSE SAE 100 R7
TUBE : NYLON REINFORCEMENT: A SINGLE STEEL WIRE BRAIDED
COVER: POLYURETHANE TEMPERRATURE: -40°C TO + 100°C
TECHNICAL DATA OF THE SINGLE STEEL WIRE BRAIDED RESIN HOSE SAE 100 R7
| Inner | I.D.xO.D. | Working | Burst | Bend | Weight | Allowed tolerance | |||
| 　 | 　 | 　 | pressure | Radius | |||||
| Dash | Inches | mm | bar | psi | bar | psi | mm | Kg/m | mm |
| -6 | 1/4" | 6.3X12 | 280 | 4000 | 1000 | 14500 | 50 | 195 | (0.05) |
| -8 | 5/16" | 7.9X13.7 | 250 | 3600 | 1000 | 14000 | 60 | 240 | (0.05) |
| -10 | 3/8" | 9.6X15.3 | 210 | 3000 | 840 | 12000 | 80 | 290 | (0.05) |
| -13 | 1/2" | 12.7X18.6 | 170 | 2400 | 680 | 9800 | 100 | 372 | (0.05) |
| -16 | 5/8" | 15.9X22 | 150 | 2140 | 600 | 8700 | 160 | 498 | (0.05) |
| -19 | 3/4" | 18.9X25 | 120 | 1700 | 480 | 6900 | 180 | 602 | (0.05) |
| -25 | 1" | 25.4X32 | 90 | 1280 | 360 | 5200 | 250 | 795 | (0.05) |
APART FROM THIS SINGLE STEEL WIRE BRAIDED RESIN HOSE SAE100 R7, OUR COMPANY CAN PROVIDE OTHER KINDS OF RUBBER HOSES AND HYDRAULIC HOSES, IF YOU ARE INTERESTED IN OUR RUBBER HOSE, PLEASE FEEL FREE TO CONTACT US.
