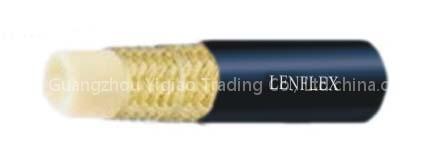

SINGLE FIBRE BRAIDED RESIN HOSE SAE100 R7
Specifications
- Brand
- LENFLEX
- Origin
- CHINA
Quick answer
SINGLE FIBRE BRAIDED RESIN HOSE SAE100 R7 is a Lighting Bulbs & Tubes product. Key specs — Brand: LENFLEX; Origin: CHINA.
Product Description
DESCRIPTIONS OF THE SINGLE FIBRE BRAIDED RESIN HOSE SAE 100 R7
TUBE : NYLON REINFORCEMENT: A SINGLE FIBRE BRAIDED
COVER: POLYURETHANE TEMPERRATURE: -40°C TO + 100°C
TECHNICAL DATA OF THE SINGLE FIBRE BRAIDED RESIN HOSE SAE 100 R7
| Inner | I.D.xO.D. | Working | Burst | Bend | Weight | Allowed tolerance | |||
| pressure | Radius | ||||||||
| Dash | Inches | mm | bar | psi | bar | psi | mm | Kg/m | mm |
| -2 | 1/12" | 2X6 | 400 | 5720 | 1200 | 17160 | 30 | 40 | (0.05) |
| -3 | 1/8" | 3X7 | 240 | 3430 | 960 | 13720 | 35 | 50 | (0.05) |
| -3.5 | 1/8" | 3.5X8.4 | 230 | 3280 | 920 | 13150 | 35 | 70 | (0.05) |
| -4 | 3/16" | 4X9 | 210 | 3000 | 840 | 12010 | 35 | 70 | (0.05) |
| -4 | 3/16" | 4.2X8.9 | 210 | 3000 | 840 | 12010 | 35 | 70 | (0.05) |
| -5 | 3/16" | 4.8X10.3 | 210 | 3000 | 840 | 12010 | 35 | 75 | (0.05) |
| -6 | 1/4" | 6.3X12.7 | 210 | 3000 | 800 | 12010 | 50 | 120 | (0.05) |
| -8 | 5/16" | 7.9X14.3 | 210 | 3000 | 800 | 12010 | 50 | 160 | (0.05) |
| -10 | 3/8" | 9.6X15.9 | 160 | 2280 | 640 | 9150 | 80 | 170 | (0.05) |
| -13 | 1/2" | 12.7X19.8 | 140 | 2000 | 560 | 9000 | 100 | 210 | (0.05) |
| -16 | 5/8" | 15.9X23.3 | 130 | 1860 | 520 | 7430 | 160 | 250 | (0.05) |
| -19 | 3/4" | 18.9X26.5 | 90 | 1280 | 360 | 5140 | 180 | 320 | (0.05) |
| -25 | 1" | 25.4X34 | 70 | 1000 | 210 | 3000 | 250 | 400 | (0.05) |
APART FROM THIS SINGLE FIBRE BRAIDED RESIN HOSE SAE100 R7, OUR COMPANY CAN PROVIDE OTHER KINDS OF RUBBER HOSES AND HYDRAULIC HOSES, IF YOU ARE INTERESTED IN OUR RUBBER HOSE, PLEASE FEEL FREE TO CONTACT US.
