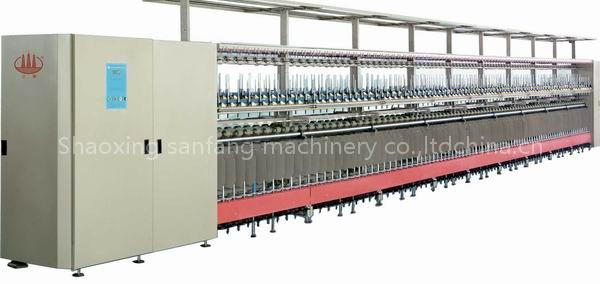

SGD-2180 Compound twisting machine

:: SGD2180 type multifunctional digital controlled compound twisting machine is the new generation twisting machine which researched and produced by our company. It is suitable for twisting two or three single yarns and doubling and then making after twist to produce into ply yarn which is needed. lt is widely used for computer embroidery, ready-made clothes, shoes and cases, fishing net, knitting and other industries.

Main technology parameters:

::Spindle numbers: Up:360, down:180

::Spindle speed : ≥6000r/min

::Spindle distance: 180mm

::Winding capacity: 750g

::Twist directions: sz or zs

::Combine yarns number: 2 or 3 roots

::Size: 180spindles,L18930 x W940 x H2200mm

::Weight : about 3000kg
