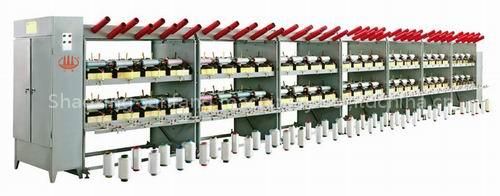

SGD280 High speed rewinding machine

:: SGD280-A/B High speed rewinding machine is practical one which is used plastic spear parts looks better-construction and shortcut; can be used air-jet and water-jet.

Main technology parameters

::Type: two sides and two layers (A), one sides and two layers (B)

::Applied winding bobbin: L280

::Range of yarn using: cotton, man made poly, poly etc

::Number of spindles: 96, increase or decrease according to 16 spindles (A);

--------------------- 48, increase or decrease according to 8 spindles (B)

::Max. speed: 400m/min

::Style of wind: double conical

::Eclectic power: 1.5kW x 4 machine (A); 1.5kW x 2 machine (B)

::Size: 96- spindle, L11050 x W900 x H1850mm

::Weight: about 2500kg
