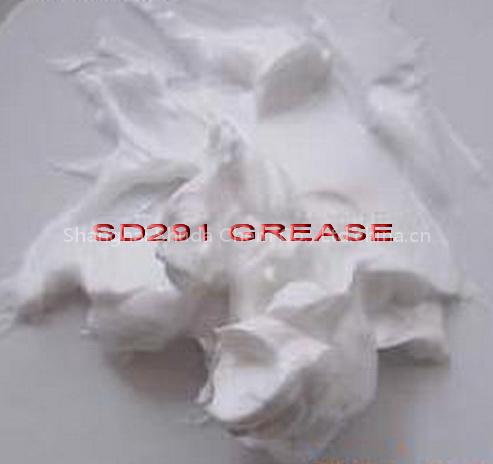

SD291 Thermal Silicone Grease

Recommended Applications: â—† thermal coupling functions for the electronics industry power amplifier tube diodes, high-power transistors, SCR components, CPU heat sink or heat sink to the bottom, and between the contact surfaces: such as TV, DVD, CPU, and power amplifier tube, starting Thermal role of the media â—† for use in microwave communications, microwave transmission equipment and a dedicated power supply, regulated power supply devices such as microwave surface coating and general potting â—† applicable to heat transfer in electronic components such as transistors, ballasts, heat sensors, computer fans and so on, high-power transistor (plastic tube), diodes and the substrate (aluminum, copper) contact with the gap of the heat transfer medium, rectifiers The thermal conductivity and electrical insulation material â—† require effective cooling for a number of effective thermal cooling devices to connect â—† applicable to high-voltage corona extinction, non-combustible coating for use with television sets and similar applications where high-voltage flyback transformer connections â—† apply to a variety of electronic, electrical devices, heating and cooling facilities for physical gap between the filling, improved heat dissipation 2.Operation Guide: â… .

Storage and use should be technological requirements, or to keep clean and dust. Coating the surface to be cleaned to remove oil. â…¡. And then heat silicone grease directly to squeeze out a uniform coating on the surface can be coated. â…¢. Note that construction of the surface should be uniform, as long as can be coated with a thin layer. â…£.

The use of the process, sometimes a small amount of entrained air, can put it aside, pressurized or vacuum row of bubbles. â…¤ thermal conductivity than the use of silicone coating the better, but to fill the gap under the premise of ensuring the thinner the better. This product Do not mix with other oil products. 3.

Specifications: Physical and Chemical Indicators: Appearance White greasePenetration Index (25℃),1/10mm 140~190Volatility 200℃/24 hours,% 3.0Bleeding 200℃/24hours % ≤ ~ 0Dielectric Constant, 1 MHz 4.8 ~ 5.2 Dielectric Dissipation Factor 1 Hz ≤ 0.9 x10-7Volume Resistivity Ω cm ≥ 3 x 1015Breakdown Strength KV/mm ≥ 3.9Thermal Conductivity kcal / m hr Degree 0.2251
