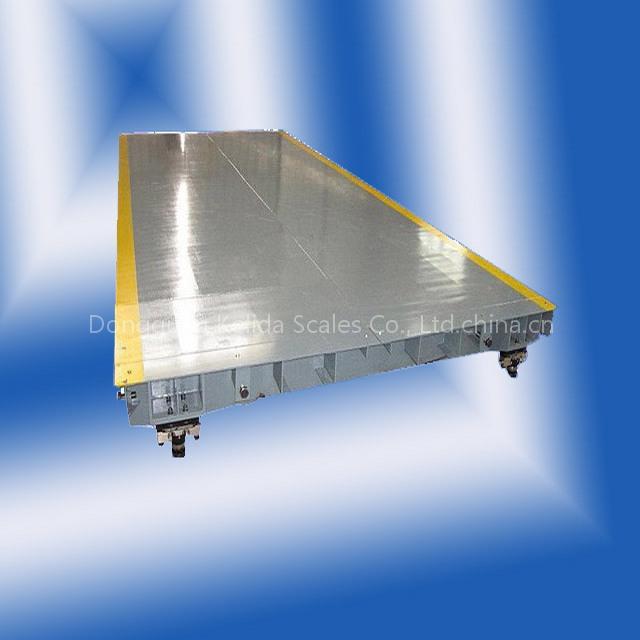

SCS-KLD09-Digital truck scale

SCS-KLD09-Digital truck scale is a kind of new generation truck scale of our company. It uses the fifth generation U shape structure and has high strength, dose not deform under transverse force. The design of weighing platform is modular, standardized and serialized, can combine many specifications freely. With high accuracy stainless steel weighing load cell and intelligent weighing indicator, it has high accuracy and long term working stability, is easy to maintain. It is widely used in port, industries, workshop, storage dock, loading bay, etc.

Features of KLD digital truck scale:

1.Strong anti-jamming capability assures accuracy and stability.

2.transmission distance is more than 1000m

3.avoid the problem of unbalance loading, temperature changes and creep effect of long time load

4.automatic faults diagnosis

5.digital calibration technique, low fault rate

6. high ability of anticorrosion, lightning stroke prevention andmoistureproofing

Technical parameters:

1. accuracy class: OTML III
2. Weighing range: 10- 150 (T)
3. Platform length: 5- 24m
4. Platform width: 3- 3.4m
5. temperature range: weighing indicator: -10- 40℃
6. weighing platform: -30- 65℃
7. relative humidity: < 95%
8. power supply: 220V(AC) 50HZ
9. interval: ≥3000

Standard configurations

1. a set of weighing platform
2. a digital weighing indicator
3. weighing load cell
4. a stainless steel and waterproof junction box
