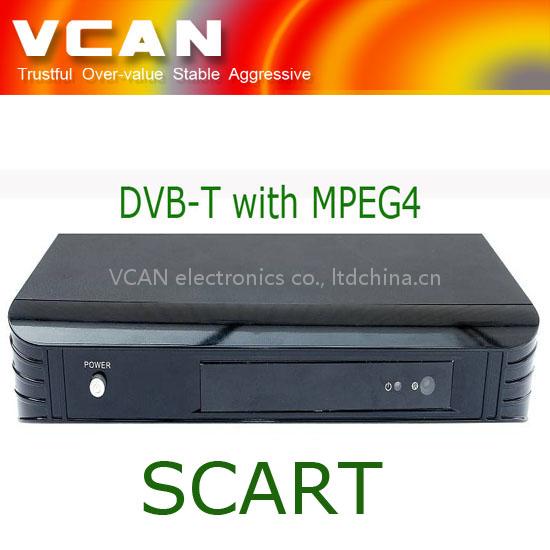

SCART DVB-T receiver with MPEG4
Listing ID#10008608
ModelHM-DVB7000HD
CategoryCommunication Cables
Communication Cables

SCART DVB-T receiver with MPEG4

Specifications

Brand
vcan
Origin
CHINA
Request Quote
Quick answer

SCART DVB-T receiver with MPEG4 is a Communication Cables product. Key specs — Brand: vcan; Origin: CHINA.

Product Description

ITEMTECHNICAL PARAMENT
DTV SystemInputInput Frequence: VHF 177.5Mhz~~226.5MHZ, UHF 474MHz~~858MHz
Input Power Frequence : -82dBm~~-0dBm
Input Resistance : 75 Ohm
TuningInput code rate : 4.98~~31.67Mbit/s (8MHz bandwidth)
COFDM
Modulate : QPSK, 16-QAM, 64-QAM
7MHz or 8MHz
FFT model : 2k/8k
MPRG â…¡ DecodeStandard : MPEG 2: ,MPEG-4:
Input rate : max 60Mbit/s
Video output mode: Video (PAL/NTSC optional)
audio decode mode: MPEG-1: Layer â… /â…¡/â…¢, MPEG-2: Layer â… /â…¡
Audio output mode : Stereo and Licam ( Left and Right)
subtitlemulti-language upon different TS.
TEXT
(OSD, EPG, TEXT, TITLE) support languageenglish,german, french, Portuguese, Spanish, Italian, Dutch, Finnish,Swedish optional
video outputCVBS/RGB output format (PAL/NTSC/AUTO )
connect terminalsaudio coaxial output jack, SCART TV output jack, SCART VCR jack, power plug, antenna jack
display mode4: 3 / 16 :9
Power sourceAC 100V -220V
power consumptionabout 5W
Unit size220mm x 147mm x 38mm
weightaround 530g
working temperature0 - 40℃



CONTACT:JESSICA ZENG
