Listing ID#10155299
ModelSC100/100
CategoryVehicles & Transportation

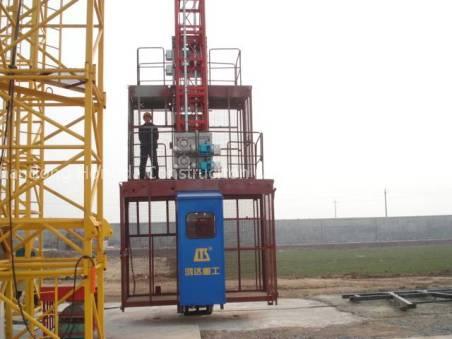

SC100/100 Construction Elevator
Specifications
- Brand
- Tielishi
- Origin
- Shandong China
Quick answer
SC100/100 Construction Elevator is a Vehicles & Transportation product. Key specs — Brand: Tielishi; Origin: Shandong China.
Product Description
Model:SC100/100
Height:50M
Rated Loading Capacity:2*1000Kg
Passenger Number:2*12
Rated Lifting Speed:36 M/Min
Max. Lifting Height:200M
Moter Power:2*2*11 Kw
Inner Dimension of Cage:3M*1.3M*2.2M
Cage Weight:1400Kg
650 Mast Section Size:650MM*650MM*1508MM
650 Mast Section Weight:148Kg
800 Mast Section Size:800MM*800MM*1508MM
Hanger Rated Lifting Capacity:200Kg
Bottom Outline Dimension:3100MM*4200MM
