S101 Screw Circuit Breaker is a Circuit Breakers product. Key specs — Origin: China (Mainland).
Product Description
Model No.:RuiherCB0001 Product
Origin:China Brand
Name:Ruiher
Price Terms:FOB, CIF
Payment Terms:T/T, LC
Certification: Description:

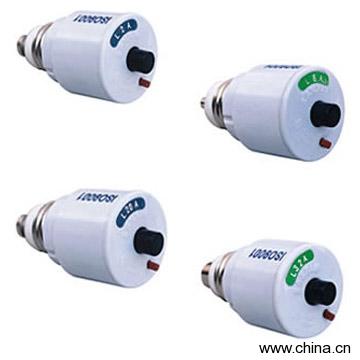

Product Name: S101 Screw Circuit Breaker
Model Number: RuiherCB0001
Place of Origin: China
Features: 1) Used in AC and DC 32A and below electric circuits of 50Hz,up to 380V and up to DC 250V respectively2) For protection of electrical circuits and apparatus in office and residence buildings, and circuit terminals against overload and short circuit3) A durable protection that substitutes the traditional fuse element 4) Can be used in each fuse socket with E27 thread according to DIN 404405) Installing: screwed into the fuse socket instead of fuse bed and cartridge fuse6) Instruction: a) Switched on after the black push-button has been pressed and is switched off when the red push-button is pressedb) In case of emergency, the failure should be found and eliminated, before the black push-button is pressed againc) Then ready for operation;
