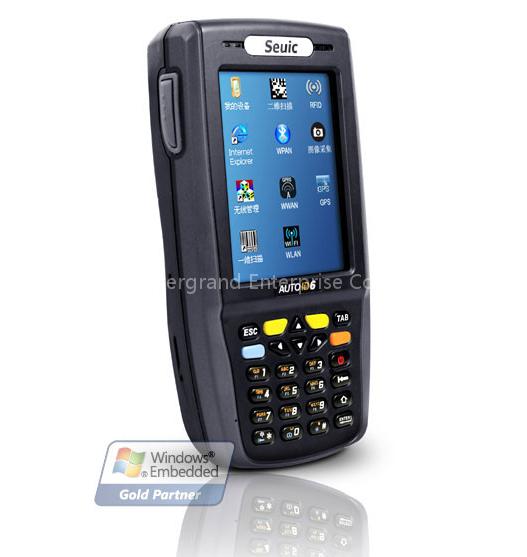

Rugged PDA

Rugged, ergonomic design for all-day use.

Highly configurable and upgradeable, allowing up to&nbsp 3 integrated wireless communication options in the same device Combines the power and speed of the Intel®XScale ™processor and the Microsoft® Windows® CE5.0 for operating system Available with either integrated imaging or laser scanning technologies Large, transflective color display provides crisp, vivid Screen for high contract both indoors and out ·28-key numeric keypad Lightweight yet rugged Built for year-round use in nearly any environment with industry-leading double impact testing (drop and tumble), IP64 sealing, and integrated antennas.

Marvell IntelⓇXScale ™ PXA303 624 Mhz &nbsp nbsp; &nbsp Offers desktop-like multimedia performance with lower power requirements. MicrosoftⓇWindowsⓇCE 5.0 Integrated multimedia and persistent memory. Voice and high-speed wireless data

WWAN: GPRS/EDGE/EVDO/HSDPA,GSM/CDMA/CDMA2000/TD-SCDMA/WCDMA WLAN: 802.11a/b/g twi-mode radio; WPAN: Bluetooth Bluetooth v2.0/EDR

High quality Speaker, receiver, microphone, headset jack&nbsp Offers superior voice quality and performance. Advanced data capture: 1D and 2D bar code scanning Automate and error proof data collection and increase productivity. 3.5 in. QVGA color screen Easy to view in any lighting. Standard 28-key numeric keyboard &nbsp nbsp;Easy and convenient to use.

Support for standard and extended cards Provides additional memory and expandable functionality. Multiple battery options: standard and extended Ample power for full shifts in nearly any environment. AutoID6 Specifications&nbsp Performance Characteristics&nbsp CPU:&nbsp Marvell Intel?XScale ?

PXA303 624 Mhz Processor Operating System :&nbsp Microsoft?Windows?CE 5.0 Memory(RAM): 64MB/128MB mDDR User Memory Space (Optional): 1GB-4GB User Memory Space Expansion: Micro SD Card compatible SDHC Interfaces: RS232,USB1.1 Device/Host nbsp Data Capture Options and Specifications&nbsp Option 1: 1D Laser Scan Engine&nbsp Option 2: 2D Imager Engine &nbsp Option 3: RFID Reader&nbsp nbsp; &nbsp Option 4: Integrated GPS&nbsp Wireless Data Communications: &nbsp Option 1: Wireless LAN ( IEEE?802.11b/g )&nbsp Data Rates Supported: 802.11b: up to 11 Mbps nbsp; 802.11g: up to 54 Mbps Operating Channels: Depending on countries (regions) located, normally 2.4-2.5GHz Output Power: 14.5dBm(Standard) Security: WEP,TKIP,LEAP,PEAP,EAP-TLS,WPA Antenna: Internal for LAN, External for WAN Option 2: Wireless WAN Radio &nbsp nbsp; GPRS/EDGE/EVDO/HSDPA,GSM/CDMA/CDMA2000/TD-SCDMA/WCDMA&nbsp Option 3: WPAN&nbsp nbsp; Bluetooth v2.0/EDR&nbsp nbsp Physical Characteristics &nbsp Keypad: 28-key Numeric Display: LED backlight, Touch screen, TFT-LCD nbsp; Transflective 3.5" QVGA , 65K colors, 240 x 320 (W x L) Power Supply: Rechargeable Lithium Ion 3.7V,2500mAh Smart Battery nbsp; Built-in backup battery Dedicated 60 pin expansion connection: Modem×1,USB Host×1,SPI×1,IIC×1,SDIO×1 Notification: Vibrator/LED Audio: Speaker, receiver, microphone, headset jack Dimensions : 158mm(L)×84mm(W)×39mm(D) Weight(includes battery): 345g nbsp User Environment&nbsp Operating Temperature: -10Celsius to +50Celsius A31:B140 Storage Temperature: 20 Celsius to +60 Celsius Humidity: 5% to 95% RH non-condensing Ingress Protection Enclosure Rating: IP64 Drop Specification: Multiple drops to concrete: 4 ft./1.2m Tumble Specification: 5-400Hz PSD(random)and 30g(3axes) Electrostatic discharge (ESD): 15kV air discharge; 8kV direct discharge C99 nbsp Peripheral and　Accessories&nbsp Standard Accessories: Powered and Charging Cable, Serial and USB v1.1 charging cables, Touch pen, Nylon hand strap Optional Accessories: Single Dock,RS232 Cable for Dock,1-Slot Battery Charger, Nylon holster w/belt nbsp Application Development Support&nbsp Microsoft Windows CE Free SDK&nbsp Software Compile Tools: Embedded Visual C++ 4.0 nbsp;Visual Studio 2005(.NET CF 2.0 Supported) nbsp;Visual Studio 2008(.NET CF 3.5 Supported) Terminal Free HDK &nbsp nbsp Approvals&nbsp 3C Certified&nbsp RoHS-compliant version available&nbsp WARRANTY&nbsp The AutoID 6 is warranted against defects in workmanship and materials for a period of 12 months from date of shipment provided that the product remains unmodified and is operated under normal and proper And it shall be repaired within the next 24 months by charging.&nbsp &nbsp
