Listing ID#10100228
ModelLWZ-D550x550/1500KN 150T
CategoryFurniture Making Machines

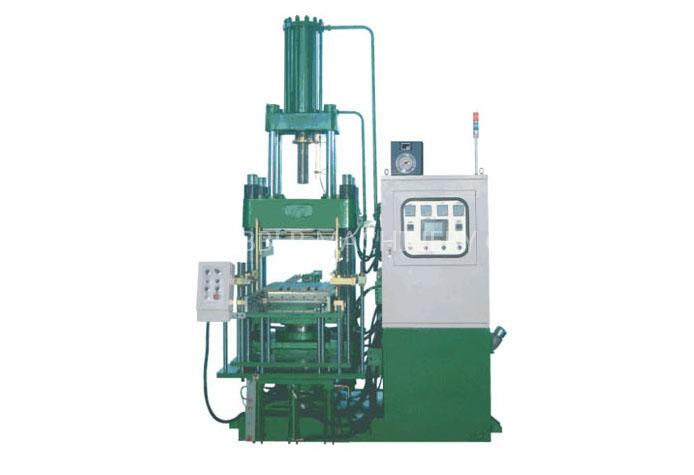

Rubber injection transfer molding-150T
Specifications
- Brand
- LIWEI
- Origin
- CHINA
- Price Term
- FOB
Quick answer
Rubber injection transfer molding-150T is a Furniture Making Machines product. Key specs — Brand: LIWEI; Origin: CHINA; Price Term: FOB.
Product Description
Rubber injection transfer molding machine-150T
Detailed goods description for LWZ-D550x550/1500KN 150T:
| CLAMPING FORCE | 1500KN |
| SYSTEM PRESSURE | 21MPa |
| CLAMPING STROKE | 300mm |
| FAST CLAMPING SPEED | ≥60mm/s |
| HEATER PLATEN SIZE | 550×550mm2 |
| HEATER PLATEN DISTANCE | 200-500mm |
| MAX TEMP | 250 |
| TRANSFER STROKE | 435mm |
| TRANSFER PRESSURE | 110Mpa |
| HOPPER SPECIFICATION | 90×285mm |
| INJECTION WEIGHT | 1844cc |
| MOTOR POWER | 5.5KW |
| HEATER POWER | (6+6)KW |
| OIL TANK CAPACITY | 380L |
| EXTERNAL DIMENSION | 2150mm×2100mm×(2900-3300)mm |
| WEIGHT | 4.5T |
FEATURES:
with SIEMENS or MITSUBISHI PLC controller, easy to operate. the moving platen protects the mould and raise production efficiency.
rubber injection moulded products:
automobile parts (shock absorber),Rubber Gasket, Rubber Bumper, Rubber Dust Cap, Rubber O Rings, Rubber Couplings, Rubber Washers, Rubber Seals, Rubber Grommets. construction(rubber mat), medical equipment(stopper for glass utensils),electric power(rubber insulation gloves) as well as Rubber Boots, Rubber Bellows,
