Rubber ceramic liner is a Metals & Alloys product. Key specs — Origin: CHINA; Price Term: FOB.
Product Description
1.Product description:

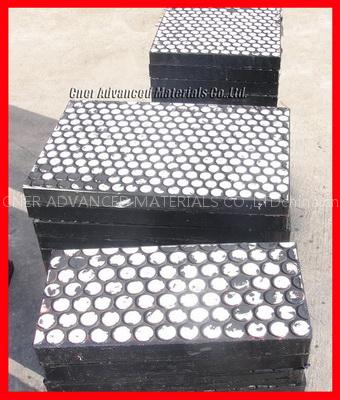

Ceramic Rubber Liner is compounded by rubber sheet, flat or spherical ceramic tiles and
steel plate through hot vulcanizing process.It is fixed to equipment surface by means of bolts
connection. There are two types of ceramic surface:flat and spherical.Ceramic Rubber Liner is
high wearable,high cut-resistant, and super impact-resistant.
2.Features:
High wear and cut resistance
High impact resistance
3.Technical parameters:
3.1.Aluminum Oxide content of ceramic:92±1%;specific gravity of ceramic :3.6±0.1;hardness of ceramic:>mohs hardness 9;color: white.
3.2.Rubber:NR;speeling strength:≥800N/cm
3.3.Steel plate:Q235A
3.4.Selection principles:
The impact surface of direct blanking point should adopt spherical ceramic rubber liner,
other abrasive surface could use flat ceramic rubber liner.
3.5.We can supply concrete working drawing.
