Listing ID#10100192
Model200T
CategoryFurniture Making Machines
Quick answer

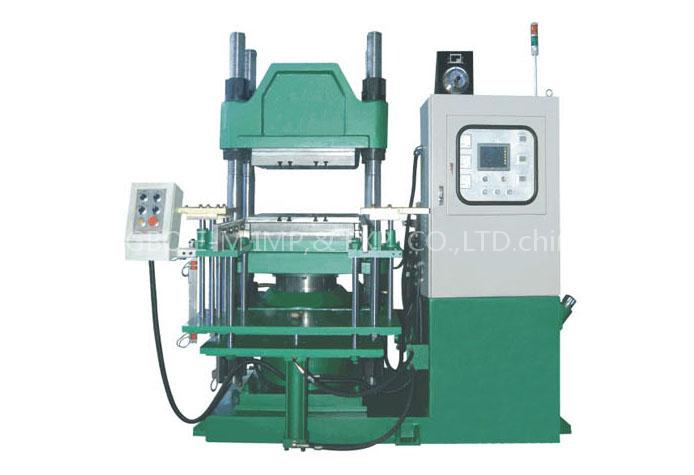

Rubber Vulcanizer Machine is a Furniture Making Machines product. Key specs — Origin: China.
Product Description
Rubber Vulcanizing Machine
Technical Parameter Table
| Type | 200T Rubber Vulcanizer Machine |
| Clamping Force | 2000KN |
| System Pressure | 300mm |
| Fast Clamping Speed | ≥60mm/s |
| Ejector Stroke | 300mm |
| Ejector Tonnage | 60KN |
| Heater Platen Distance | 180~480mm |
| Heater Platen | 550mm×600mm |
| Max Temp | 250 |
| Motor Power | 5.5KW |
| Heater Power | (6.6+6.6)KW |
| Oil Tank Capacity | 480L |
| External Dimension | 2000mm×2050mm×(1800~2100)mm |
| Weight | 4.5T |
