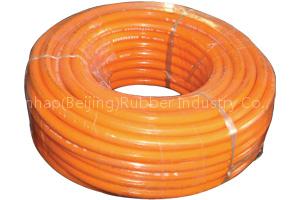

Rubber Hose

APPLICATIONS：Mainlyused for spraying agricultural chemicals in agriculture and highpressure water, air or other liquids in high pressure washing machine,construction machine, construction machinery and industry production.

TUBE: black or other colors flexible PVC.

REINFORCEMENT: High tensile synthetic fibre spiraled.

COVER: Yellow flexible PVC, surface of cover can be smooth and corrugated.

CHARACTERISTICS: Abrasion resistant, weather resistant, oil resistant, acid＆alkaliresistant and corrosion resistant. Its of high pressure bearable,flexible, light in weight, anti-bending and nice bright surface.

STANDARD LENGTH: 50m, 100m.

TEMPERATURE RANGE: -5℃~+65℃(+23℉ to +149℉)

Technique parameter

Inside diameter		Outside Diameter(mm)	Working Pressure (MPa)	Burst Pressure (MPa)	Lengh max (m)	Weight (kg/m)	Packing Measurement D×H（mm）
inch	mm
1/4″	6	12	3.0	12.0	100	0.111	400×130
5/16″	8	15	3.0	10.0	100	0.165	500×140
	8.5	15	3.0	10.0	100	0.156	500×140
3/8″	10	17	2.5	8.5	100	0.193	530×140
