Listing ID#10210236
ModelSBJY-50/80
CategoryBusiness Services

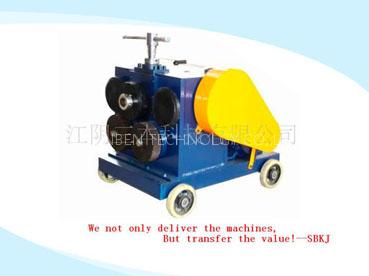

Round Flange Forming Machine
Specifications
- Origin
- jiangyin
- Price Term
- FOB
Quick answer
Round Flange Forming Machine is a Business Services product. Key specs — Origin: jiangyin; Price Term: FOB.
Product Description
Main Technical Date:
| SBJY-50 | |||
| Angle iron specification | Min. machining diameter | Flat bar specification | Min. machining diameter |
| 5# | Ä€≥600 | 50×5 | Ä€≥600 |
| 4# | Ä€≥500 | 40×4 | Ä€≥500 |
| 3# | Ä€≥250 | 20×2 | Ä€≥200 |
| Working Speed | 2m/min | ||
| Motor Type/Power | Y132M-6/4 kw | ||
| Dimension | 870×615×890 mm | ||
| Weight | 380 kg | ||
| SBJY-80 | |||
| Angle iron specification | Min. machining diameter | Flat bar specification | Min. machining diameter |
| 6# | 700 | 60×6 | 700 |
| 7# | 1200 | 70×7 | 1200 |
| 7#×75 | 1500 | ||
| 8# | 1800 | 80×8 | 1800 |
| Working Speed | 1m/min | ||
| Motor Type/Power | 1.5m/min | ||
| Dimension | 1300×1050×1000 mm | ||
| Weight | 960 kg | ||
