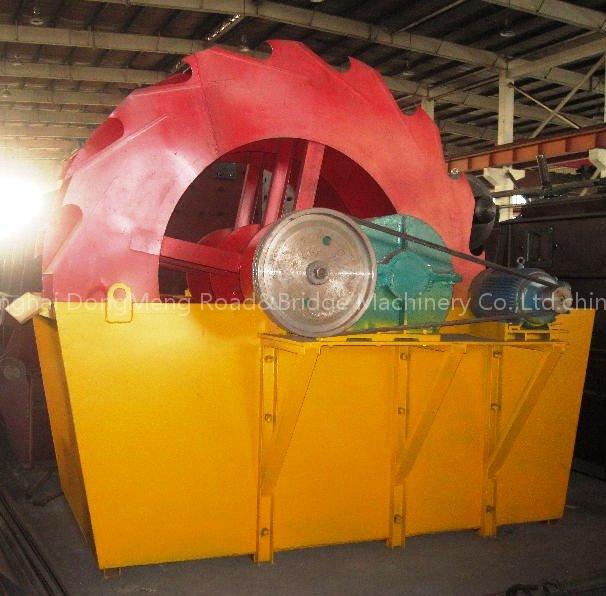

Rotating Sand Washing Machine

A). Reliable quality certified by CE.
B). Highly effective of washing rate.
C). Less loss of fine aggregate and sand.
D). It is almost no wearing parts except the screen cloth.

Application of XSD Sand Washer Machine

Sand washing machine is applied for washing applications in sand plant, mine, concrete batching plant, and industries like building materials production, transportation, chemistry, water conservancy, etc

Working principle of XSD Sand Washing Machine
Electric motor rotates impeller slowly through V-belt and reduction box. The sands rotate with the impeller and rub each other so that the impurities on the surface of the sands are scaled off. By adding water to form a powerful current, the impurities are removed from the sand washing machine.

Technical specification

Model	Spiral Diameter (mm)	Flume Length (mm)	Selected Size (mm)	Production Capacity (t/h)	Spiral Speed (r/min)	Water Consumption (t/h)	Motor Power (t)	Weight (t)	Overall Dimension (mm)
LSX915	915	7585	≤10	100	21	11	10-80	3.48	8500×2950×1930
2LSX915	915	7585	≤10	200	21	2×11	20-160	5.2	8420×3765×2030
LSX1115	1115	9782	≤10	175	17	15	20-150	10.18	10970×3945×4720
2LSX1115	1115	9782	≤10	350	17	2×15	40-300	17.94	10970×5250×4720
XSD2610	2600	3220	≤10	50	0.8	5.5	4-4.5	2.7	3220×2125×2670
XSD3016	3000	3810	≤10	80	0.8	7.5	16.30	3.2	3400×2615×2800
