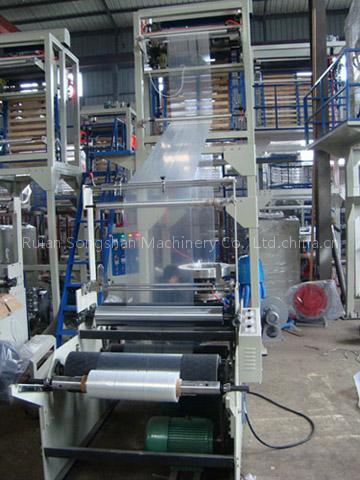

Rotary Die Head Film Blowing Machine/plastic extruder

Model: SJ-55 rotary die head double winder film blowing machine Max Folding Width of film: 800mm Max. Output: 50KG/H Extruder Main motor power: 15kw Diameter of screw: 55mm L/D ratio of screw: 28: 1 Speed of screw: 5-100rpm Barrel cooling: 1/6 HP blower*2 Aluminum cast heater: 6PCS Rotary die head Heaters on die: 2PCS, stainless steel heater Max.

Film thickness: 0.08mm Screen filter: Manual type Gear Box: 2 Axis gear box Material of screw and barrel: Alloyed high-quality steel 38CrMoAlA with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment LDPE inflation die: 80, 100mm diameter Cooling air blower: 2.2kw Aluminum Alloy x 1 set (6 air inlet hose) Take up unit Fixed roller: 900mm Take up rollers: 165mm diameter*900mm (L) Take up motor: 0.75KW AC motor with gear reducer Guide rollers: 75mm diameter*900mm (L) Wooden plank bubble supports Take off speed: 5-80m/min Press rollers controlled by Pneumatic cylinders.

Double winding station Winding motor: 5N/M torque motor with gear reducer Friction metal roller: 220mm diameter*900mm (L) Air shaft: 4PCS, 900mm in length Manual bobbin changing and cutting Control cabinet 1). Temperature of screw automatically controlled ( 5 zones) 2). Independent switches controls including amp, rpm and m/min meters for the whole machine.

Dimension (L*W*H): 5500mm*2400mm*4500mm Weight: About 2400kg Including 1). Two Inflation die 2). 900mm rollers with Pneumatic open and closing AC driven 3). With manual cutting and rolling changeover 4). Air compressor 5). Lip air ring 6). Moment motor controlling box 7). Heating loop 8). Extra screw: 2PCS Spare parts list 1). Temperature controller: 2pce 2).

Voltage meter: 2pce 3). Current meter: 2pce 4). Switch: 5PCS 5). Thermocouple: 2PCS 6). Heater: 2PCS 7): Filter screen: 1pce 8): Wind pipe: 10PCS 9): Belts: 10PCS 10): AC contactor: 2PCS 11): Torque motor controller: 1PC 12): One set of tools
