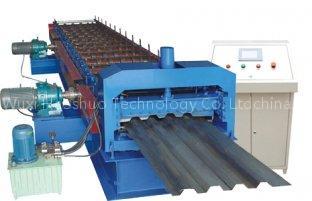

Name: Roof panel forming machine
SKU: custom made

Product Description

Delivery Time:about 40 days after receipt down payment
Roof Panel Forming Machine

Main Features
Roof panel roll forming machine, adopting roll forming method, can produce beautiful appearance, strong panels which are extensively used in roof construction or outdoor decoration. This type of machine possesses advanced and innovative technology that can provide convenient roller change. This type can be equipped with PLC control and touch screen.

Working flow

Decoiling---Feeding & Leveling---Punching---Roll Forming---Cutting---Products Platform

Process Sketch of machine

Main Technical Specifications

Number	Items	Unit\Type	RF-RP
1	Steel Thickness	mm	0.3-0.8
2	Forming Speed	m/min	12-15
3	Roller stands	stand	18
4	Roller Material	Â	45# steel, coated with chrome
5	Main Motor Power	Kw	5.5
6	HydraulicÂ cutting Power	Kw	3
7	Hydraulic pressure	Mpa	10-12
8	Power Supply	Â	380V, 50HZ,3 phase
9	Tolerance	mm	1.0
10	Material of cutting	Â	Cr12
11	Control system	Â	Panasonic PLC with touch screen
12	Machine net weight	T	8
