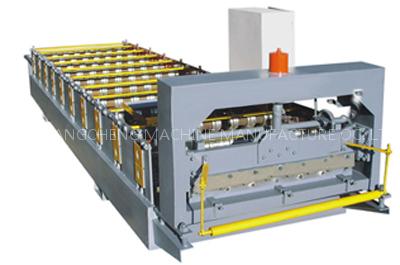

Roof Sheet Forming Machine

1. Material Width: 280mm & 260mm. 2. Material Thickness: 0.4mm-0.8mm. 3.Suitable Raw Materials: Pre-painted coil; Zinc coated plate. 4. Forming speed: 12-15m/min. 5. Forming Stations: 11 6. Material of rollers: Good 45#, rigid chrome coated. 7. Power of main motor: 3kw. 8. Dimensions: about 3800mm x 1200mm x 1380mm. 9.

Power: 380V 50HZ 3phase 1 phase voltage 220VThe equipment include: 1. Un-coiler, 1 set 2. Main Roll forming machine, 1 set 3. Hydraulic cutting, 1 set 4. Hydraulic station, 1 set 5. Electric controlling system, 1 set 6. Product rack (un-powered), 1 set 7. Instruction Book, 1 piece
