Roof Panel Roll Forming Machine
Listing ID#17600
ModelLT-Roof panel
CategoryOther Construction Machinery
Other Construction Machinery

Roof Panel Roll Forming Machine

Specifications

Origin
Shandong, China
Request Quote
Quick answer

Roof Panel Roll Forming Machine is a Other Construction Machinery product. Key specs — Origin: Shandong, China.

Product Description

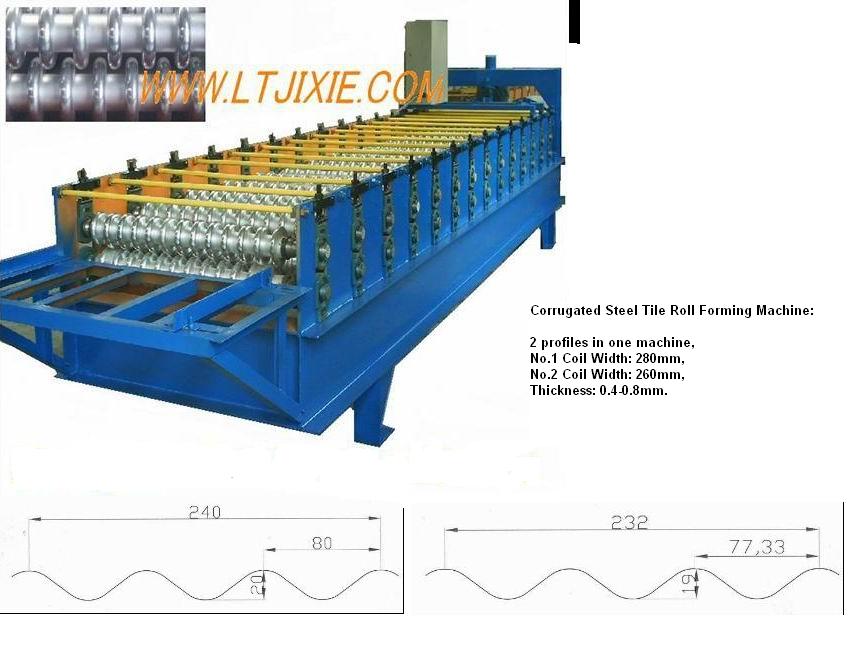

Roof Panel Roll Forming Machine(2 profiles in 1 machine)

Specification: 1.Material Width: 280mm & 260mm. 2.Material Thickness: 0.4mm-0.8mm. 3.Suitable Raw Materials: Pre-painted coil; Zinc coated plate. 4.Forming speed: 12-15m/min. 5.Forming Stations: 11 6.Material of rollers: Good 45#, rigid chrome coated. 7.Power of main motor: 3kw. 8.Dimensions: about 3800mm x 1200mm x 1380mm.

9.Power: 380V 50HZ 3phase （1 phase voltage 220V） We can design and make according to customer’s requirement.
