Ring Joint Gasket
Listing ID#10061405
ModelGOT
CategoryOther Farm Machines

Ring Joint Gasket

Specifications

Origin
china
Request Quote
Quick answer

Ring Joint Gasket is a Other Farm Machines product. Key specs — Origin: china.

Product Description

Emali
Product Information:

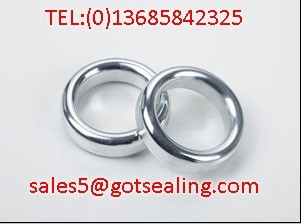

Description: GOT-450 Ring Joint Gasket chooses solid metal with kinds of materials, and is mechanically cut and processed into metal sealing gaskets with kinds of forms by high precision NC lathe. It is suitable for the sealing part of pressure container, valve, and cylinder head with high temperature, high pressure, and strong corrosion. General characteristic is installation area small and preload pressure high.
Metal Flat Gasket
Metal Elliptic Gasket
Metal Aniseed Gasket
RX Type Metal gasket
BX Type Metal Gasket
Special-shaped Metal Gasket
Selectable material:

Material

Hardness(HB)

Temperature(℃)

Soft iron

90

530

Carbon steel

120

530

304(L)、321、316(L)

160

750

5Cr1/2Mo

130

500

Relavant standards:

Ring Gasket Standards and Flange Standards

RJG type

RJG Standard

Flange Standard

R

ASME B 16.20,API 6A

ANSI B 16.5,ANSI B 16.47 A

RX

ASME B 16.20,API 6A

API 6B

BX

API 6A

API 6BX
