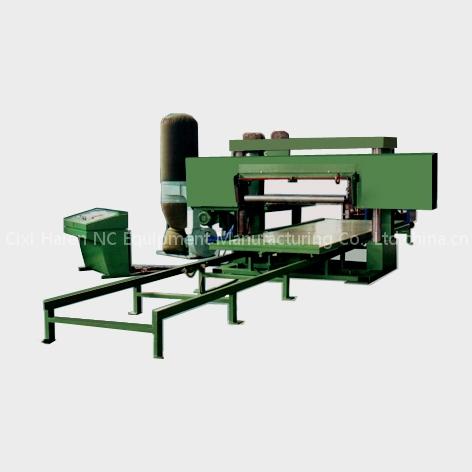

Rigid foam cutting machine

Rigid foam Cutting Machine Introduction: Rigid foam cutting machine foam cutter foam cutter The machine is used for cutting PU rigid polyfoam foamed in box into slices of required thickness.Characteristics:1.

The equipment includes cutter-tightening wheels, having good rigidity, especially suitable forslicing PU foam plastic with the Shaw hardness below 80 and having big bearing ability and stable cutting property.2.

Square steel worktable with smooth surface and strenghful structure is adopted to mate with rigid wheel case and to guarantee stability and accuracy in the process of cutting.3. Slicing tool employs a wide strip cutter. The cutter produces no flying dust and ensures smoothness and good parallelism of slicing surface, yet leaving no cutting trace.4.

Operations of the machine can be completed by means of program-controlling,which has advantages of precisely controlling cutter height, easily setting computer, owning photoelectric display function and having convenient operating modes of both auto and manual.Structure and operating principle The machine is consisted of cutter-tightening wheel, cutter raising and lowering mechanism, worktable assembly and computer controlling system and so on.

It works as follows: Slicing thickness and cutter raising height shall be predefined, then cutter raising and lowering mechanism goes into automatic working state and the worktable carries foam to be sliced by the strip cutter on high-speed rotating wheels.

After slicing is finished, computer will sent out a signal and cutter shall be automatically raised to preset height and worktable will return to original place. At this time the cutter, deducting the raised height, will be lowered to the appointed height and prepare for another cutting.Main technical parameters Model HW-PQ-RG18

Width range of slicing 2mm~150mm

Maximum slicing width 1700 mm

Maximum size cutting size 2500mm×1700mm×700mm

Speed of worktable running(infinitely frequency variable) 0 m/min~12 m/min

Size of worktable 3000mm×1800 mm

blade Linear speed of strip cutter moving 0~14m/s

Total power 6KW

Overall weight 3000kg
