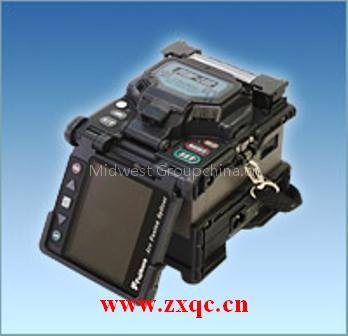

Ribbon Fiber Arc Fusion Splicer

Ribbon Fiber Arc Fusion Splicer Model:MWFSM18R

Features: - Up to 4-fiber ribbon splicing. - Cladding alignment with fixed v-grooves. - Environmental resistant features. - Arc calibration-free system. - 4.1" TFT color LCD monitor. - Dual directional operation system. - Long life battery. - Software upgrade via Internet. - Detachable work table (attached to carrying case).

SPECIFICATIONS: - Applicable type of fibers : SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU -T G.653), NZDS(ITU-T G.655) - Fiber count : Single, 2 and 4 - Applicable fiber dimensions : Ribbon : Cladding diameter 125μm, Ribbon fiber thickness 0.25 to 0.4mm Single : Cladding diameter 125μm, Coating diameter 250μm and 900μm - Fiber cleaved length : 10mm - Splicing modes : Total 100 modes - Typical splice loss : 0.05dB with SM, 0.02dB with MM, 0.08dB with DS, 0.08dB with NZDS.

(Measured by cut-back method relevant to ITU-T standard). - Return loss : >>60dB - Splicing time : Typical 20sec. with standard SM( ITU-T G.652) - Splice loss estimate : Available - Tube heater / heating time : Built-in tube heater with 30 heating modes. / Typical 40sec with Fujikura FP-04T and 50sec with FP-05. - Applicable protection sleeve : 60mm, 40mm and Fujikura FPS01 series - Storage of splice result : The last 2000 results to be stored in the internal memory. - Tension test : 1.96 to 2.25N - Operating condition : 0 to 5000m above sea level, 0 to 95%RH and -10 to 50 degC and up to 15m/s wind velocity, respectively. - Storage condition : 0 to 95%RH and -40 to 80 degC respectively.

Battery : -20 to 30 degC for long term. - Dimensions : 136W×161D×143H[mm]excluding rubber foot. - Weight : 2.1kg with AC adapter ADC-13, 2.5kg with battery BTR-08. - Viewing method and display : Two CMOS cameras and 4.1" color LCD monitor. - Fiber view and magnification : X / Y (90X magnification), or both X and Y simultaneously( 90X magnification). - splice cycles with battery : Typical 90 cycles( splice / tube heat) with BTR-08. - Power supply : Applicable voltage from 100 to 240V AC or 10 to 15V DC with ADC-13.

13.2V DC with BTR-08. - Electrode life : 1500 arc-discharges - Terminals : USB 1.1( Mini-B type) connector for PC communication. 6-pin Mini-DIN connector for HJS-02, HJS-03 or SH-8C power supply.

STANDARD PACKAGE: 1pc. - Arc Fusion Splicer 1pc. - AC adapter / battery charger 1pc. - AC power cord 1 pair - Spare electrodes 1pc. - USB cable 1pc. - Quick reference guide 1pc. - Video instruction manual 1pc. - Warnings and Cautions 1pc. - J plate 1pc. - Carrying case Optional accessories are also available: - Battery pack - Battery charge cord - DC power cord - Magnifier - Electrodes - Wind protector mirror
