Resistance Tester is a Auto Meter product. Key specs — Brand: MIDWEST; Origin: China (Mainland).
Product Description

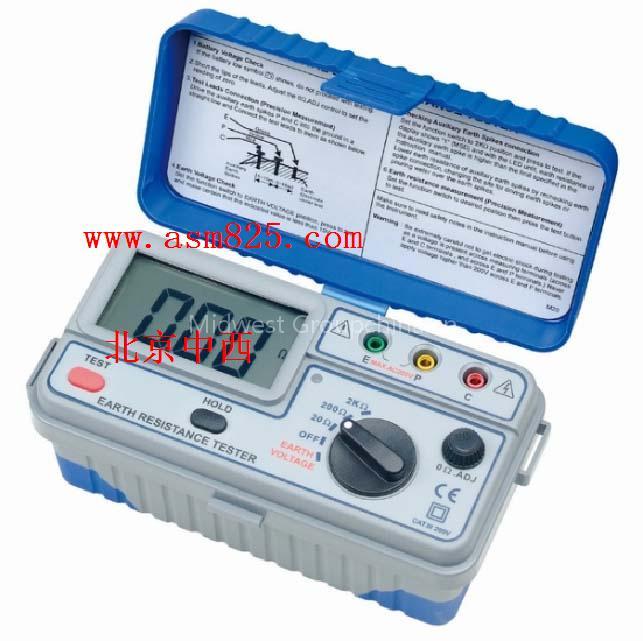

Resistance Tester Model: M392532 *Measure thegroundvoltage andgrounding resistance,to ensure that themachines, buildings, equipment,personnelsecurity. · 2m Acurrent drivemeasurements. *Can be used forthree-wireortwowiremethod ofmeasurement. · 0Ωzeroadjustment,resistancecompensation. *Lockwithreading. • Powersizeinstructions. *Testingbythe Europeansafety standardsIEC / EN 61010-1 CAT â…¢ 200V. • Use thesuppliedmeasuring linemeasurement. Technical parameters Grounding resistancemeasurementgear:0-20 / 0-200/0-2000Ω Groundvoltage:0-200V AC (40-500Hz) Error ofgrounding resistance: ± (2%reading+ 2digits)or± 0.1Ω Ground
Voltage: ± (1%reading+ 2digits) Resolution: 0-20Ω (0.01Ω) / 0-200Ω (0.1Ω) / 0-2KΩ (1Ω) Measuringfrequency andcurrent: 820Hz/2mA LCDDisplay:3-1/2 digit(2000 counts) Open circuitindication: LEDdoes not light Battery-voltageindication: Numberlock indicator: Overload indicator:1
Dimensions:175(L)*85(W)*75(H)mm
Weight:598 grams(with battery) Attachment: Test line× 1 (group):Red-20m-15myellow, green-10m Auxiliarygrounding rods× 2 (support) Simpletest line× 1 (section) Manual× 1 Strap× 1 (section)
