Remote data monitoring system
Specifications
- Brand
- kingpigeon
- Origin
- China
- MOQ
- 5
- Packaging
- Temperature Drift: less than 100ppm/degree C Dimension: 118×72×59mm mm(HxWxD) Net Weight: 160g.
- Price Term
- EXW/EX-Work,FOB
- Payment Term
- Western Union or Paypal
- Delivery Time
- 30days
- Loading Ports
- shenzhen
Remote data monitoring system is a Alarms product. Key specs — Brand: kingpigeon; Origin: China; MOQ: 5; Packaging: Temperature Drift: less than 100ppm/degree C Dimension: 118×72×59mm mm(HxWxD) Net Weight: 160g..
Product Description

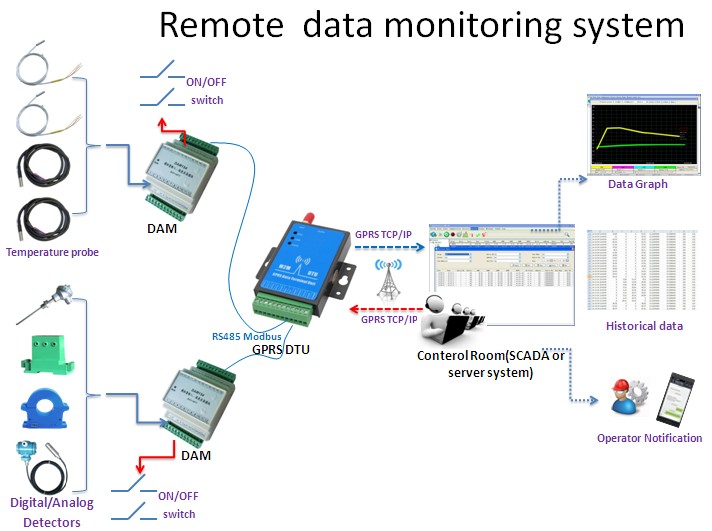

The DAM124 is for monitoring 4 digital inputs(can be used as pulse counter), 8 analog inputs, controlling 4 triode drivable digital output(50V/100mA, can be TTL or Pulse output). It supports Modbus RTU Protocol over RS485 serial port. Powered up by 10~30VDC. The DAM124 is used widely in industrial automation control systems.
E.g.: Base Transceiver Station, diesel generator rooms, engine room, transformer substations, telecommunication equipment rooms, power supply systems and so on. The DAM124 is an industrial class, high reliability, low-power consumption, high stability and high precision data acquisition module.
The DAM124 with fire retardant shell, standard 35mm DIN rail makes it easy to install in fields.
