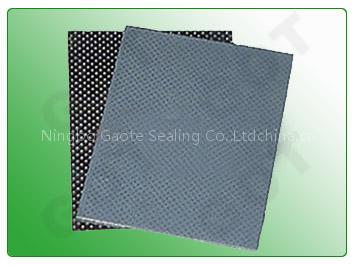

Reinforced (Non-)Asbestos Beater Sheet is a Seals product. Key specs — Brand: Gaote; Origin: china.
Product Description
GOT-633 is made of 633-1 Non-asbestos beater sheet inner lined with metal Truss Plate (generally the carbon steel with 0.2~0.25mm thickness). It is extensively applied in manufacturing various automobile and motor gaskets. It is an ideal material that will substitute the traditional asbestos gaskets.
The product has excellent performance in self expansion, high resilience and long lifespan, etc.
Mainly applied in automobile farming machine, motorcycle and engineering etc., it is also can be used in high strength gaskets and cylinder gaskets etc.Product structure:GOT-633 Truss Plate Reinforced Asbestos Beater SheetIf stored for a long time, the asbestos will have certain corrosion to the inner lined metal.Service range:Item Style
633 633-1
Density g/cm3 1.30~1.50
Tensile strength ≥Mpa 12.7
Compressibility ≥% 10±5
Recovery ≥% 40
Sealing performance <0.5cm3/min
Heat-resistance 150-300°C
Normal color: Gray, Black, or other color, etcAvailable with304 truss plate, metal mesh reinforced on request; Also available with anti-stick or graphite coatingAvailable dimension:500×1000mm; 500×1200mm; 500×1500mm;510×1016mm; 510×1530mm; 1000×1000mm; 1000×1500mm; Thickness: 1.0~2.4mm
