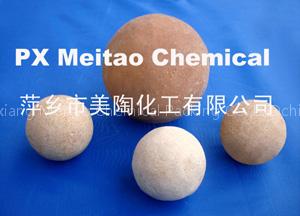

Refractory Ceramic balls

Refractory ceramic balls are mainly made of industrial alumina and refractory kaolin, processed by mixing, shaping and firing. Its high in mechanical strength and long life cycle, excellent chemical stability, and never reacts with the feeding material, excellent resistance to high temperature up to 1900 ℃. It is widely used as support and covering pickings for catalyst in shift converters, reformers, hydro converters, desulfurizers, and methanators, and can also be used as pickings in hot blast

Technical Specification

Index	Unit	Data
Al2O3	%	≥65
Fe2O3	%	≤1.6
Pore Volume	%	≤24
Compressive strength	kg/cm2	≥ 900
Refractoriness	℃	≥1800
Bulk Density	kg/m3	≥1386
Specific Gravity	kg/m3	≥2350
Refractoriness ℃ under load of 2kg/cm2	℃	≥1500
LOI	%	≤0.1

Application
　 Specially used in the high-low temperature shift furnace, converter, hydrogenation shift furnace, desulfurization furnace, etc
Used in the hot wind furnace and heat up shift appliance in steel plant
