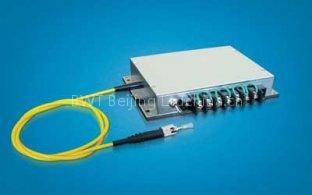

Red Laser Diode K63S08M-2.80W
Specifications
- Origin
- Beijing China(Mainland)
- Price Term
- FOB
Red Laser Diode K63S08M-2.80W is a LCD Modules product. Key specs — Origin: Beijing China(Mainland); Price Term: FOB.
Product Description
Certification:ISO9001
Key Features of Red Laser Diode K63S08M-2.80W：
2.8W output power 375µm fiber bundle diameter 0.22NA 635nm, 650nm wavelengthApplications of Red Laser Diode K63S08M-2.80W：
Medical use Material processing Biological applicationSpecifications（15/20℃） | Symbol | Unit | K63S08M-2.80W | K65S08M-2.80W | |
| Optical data | CW-output power | Po | W | 2.8 | 2.8 |
Center wavelength | lc | nm | 635 | 650 | |
Tolerance of l | - | nm | ±5 | ±10 | |
Spectral width (FWHM) | △l | nm | <3 | ||
Temperature drift of l | - | nm/℃ | ~0.25 | ||
Fiber data | Fiber bundle diameter | Wc | µm | 375 | |
Numerical aperture | NA | - | 0.22 | ||
Fiber connector | - | - | FC, ST, SMA-905 | ||
Electrical data | Operation current | Iop | A | 1.3 | 1.35 |
Threshold current | Ith | A | 0.8 | 0.8 | |
Conversion efficiency | η | % | 14 | ||
Slope efficiency | ηD | W/A | ~5.6 | ||
Operation voltage | Vop | V | ~15 | ||
Reverse voltage | Vre | V | 14 | ||
| PD data | Current | Imo | mA | 1.4~2.8 | |
TEC data | Max. current | It | A | 8.5 | |
Max. voltage | Vt | V | 39.2 | ||
Thermistor data (1) | Thermistor | Rt | (K Ω)/β(25℃) | 10±5%/3477 | |
Other specifications | Operation temperature | Top | ℃ | ||
