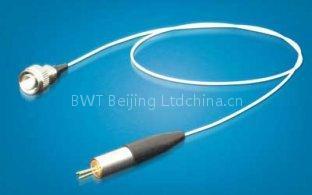

Red Laser Diode K63S03F-0.002W
Specifications
- Origin
- Beijing China(Mainland)
- Price Term
- FOB
Red Laser Diode K63S03F-0.002W is a LED Modules product. Key specs — Origin: Beijing China(Mainland); Price Term: FOB.
Product Description
Certification:ISO9001
Key Features of Red Laser Diode K63S03F-0.002W:
2mW output power 105μm fiber core diameter 0.22NA 635nm wavelengthApplications of Red Laser Diode K63S03F-0.002W:
Printing Aiming beamSpecifications（25℃） | Symbol | Unit | K63S03F- 0.002W | K63S03F- 0.005W | K63S03F- 0.015W | K63S03F- 0.03W | |
| Optical data | CW-output power | Po | mW | 2 | 5 | 15 | 30 |
Center wavelength(1) | lc | nm | 635 | ||||
Tolerance of l | - | nm | ±5 | ||||
Spectral width (FWHM) | △l | nm | <3 | ||||
Temperature drift of l | - | nm/℃ | ~0.2 | ||||
Fiber data(2) | Fiber core diameter | Wc | µm | 105 | |||
Numerical aperture | NA | - | 0.22 | ||||
Fiber connector | - | - | FC, ST, SMA-905 | ||||
Electrical data | Operation current | Iop | mA | 33 | 55 | 80 | 100 |
Threshold current | Ith | mA | 25 | 35 | 60 | 60 | |
Slope efficiency | ηD | mW/mA | 0.3 | 0.3 | 0.8 | 0.8 | |
Operation voltage | Vop | V | 2.2~2.4 | ||||
Reverse voltage | Vre | V | 2 | ||||
| PD data | Current | Imo | µA | 100~400 | |||
Other specifications | Operation temperature | Top | ℃ | 10~30 | |||
Storage temperature | Tst | ℃ | -20~+80 | ||||
Expected lifetime | MTBF | h | >10,000 | ||||
