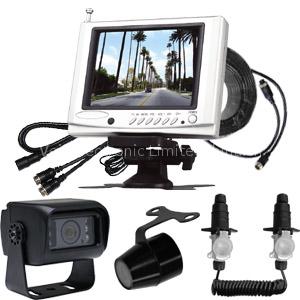

Rear view system for trailer

Dual Rear View Color Mini Cameras( Model:DF8015+DF8083) Alloyed shell vandal resistant and waterproof designed for outdoor use Video output connect: waterproof electrical outlet for aircraft Image pick-up device:1/3" color CMOS & CCD Color system: PAL/NTSC Horizontal resolution:380 & 420 TV Lines Extra-wide field of view:120 degree Power input :DC12V from monitor 5 inches Digital LCD Color Monitor( Model: SP-587) Display component:Color TFT-LCD Brightness:480cd/m2 ,contrast:150:1 Dot pitch:0.107(h) x 0.319 (v) Super sharp high picture resolution:960 (h) x 234 (v) Color system: PAL/NTSC Video input: 1Vp-p one way Reversing CAM image preferential.delay.simulant reference point .mirror image function and two video signal auto switch optional Audio output: 0.3W (Max) Audio/video(AV) input jack: electrical outlet for aircraft Power input jack: electrical outlet for 2.1DC jack Power consumption: DC11-32V External dimensinons: Width 156mm Xheight118mm Xthickness 31mm Weight: around 458g Electrical & Hardware Accessories 3pcs 10 meter electrical cables(electrical outlet for aircraft & Aluminium linker ) 1pc 2 meter circuit cables(the circuit linker of tow truck ) 1pc 1 meter electrical cables(electrical outlet for S jack ) Flat surface / in dash and universal monitor mounts Full function wireless remote controller Earphone Automobile power supply adapter User manual
