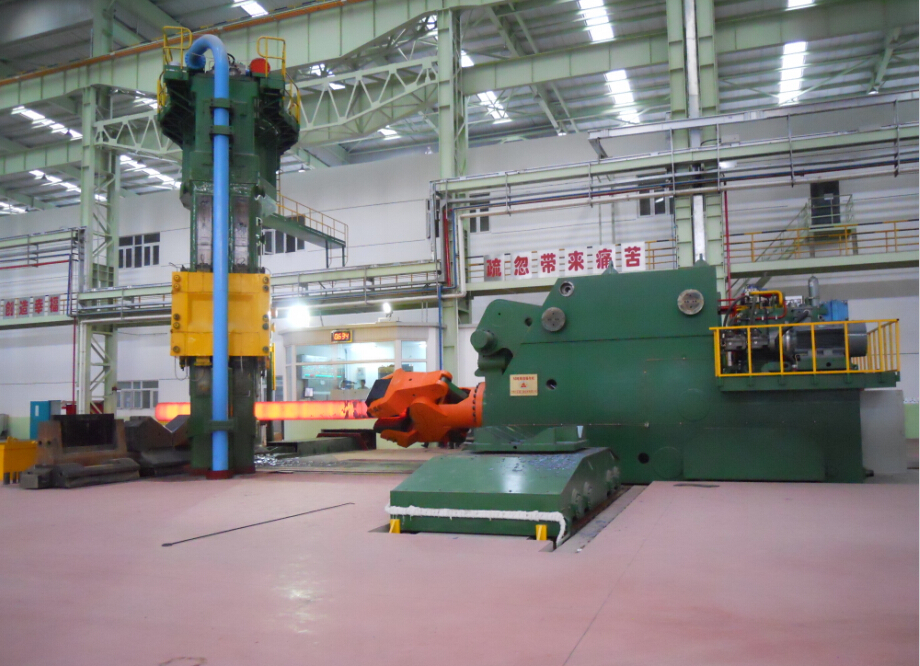

Rail bound forging manipulator
Specifications
- Origin
- China
- Packaging
- Wooden cases
- Price Term
- EXW/EX-Work,FOB
- Payment Term
- T/T,L/C
Rail bound forging manipulator is a Metal & Metallurgy Machinery product. Key specs — Origin: China; Packaging: Wooden cases; Price Term: EXW/EX-Work,FOB; Payment Term: T/T,L/C.
Product Description
MANIPULATOR SPECIFICATIONS CARRYING CAPACITY, NOMINAL: 80 TONS TONGS CLAMPING MOMENT: 2,000 KNM TONGS OPENINGS, WITHOUT INSERTS, ROUND: 800/2,000 MM ROUND WITH INSERTS: 200 - 800 MM ROUND WITH EXTENSION ARMS: 100 - 2,800 MM ROUND MAX.
TURNING DIAMETER WITH EXTENSION ARMS: 3,900 MM VERTICAL TILTING ANGLE OF TONG: UP 15 ANGLE (DOWN TO FLOOR) HORIZONTAL MOVEMENTS OF TONG IN FORGING DIRECTION, RELATIVE TO CARRIAGE: 400 MM SPEED, TIMES FORGING: 0-30 M/MIN TRAVELING: 0-50 M/MIN TURNING OF TONG: 0-8 RPM LIFTING AND LOWERING OF TONG: 90 MM/SEC TILTING OF TONG: 90 MM/SEC SIDE SHIFTING OF TONG: 80 MM/SEC ACCURACY TRAVELING: 3.0 MM TURNING: +/- 1 ANGLE TOTAL DELIVERY OF THE MAIN PUMPS: APPROX 1,450 L/MIN TOTAL CAPACITY OF ACCUMULATOR: 600 LITERS USABLE CAPACITY OF ACCUMULATOR: 200 LITERS TRAVEL DISTANCE: 25.0 METERS
