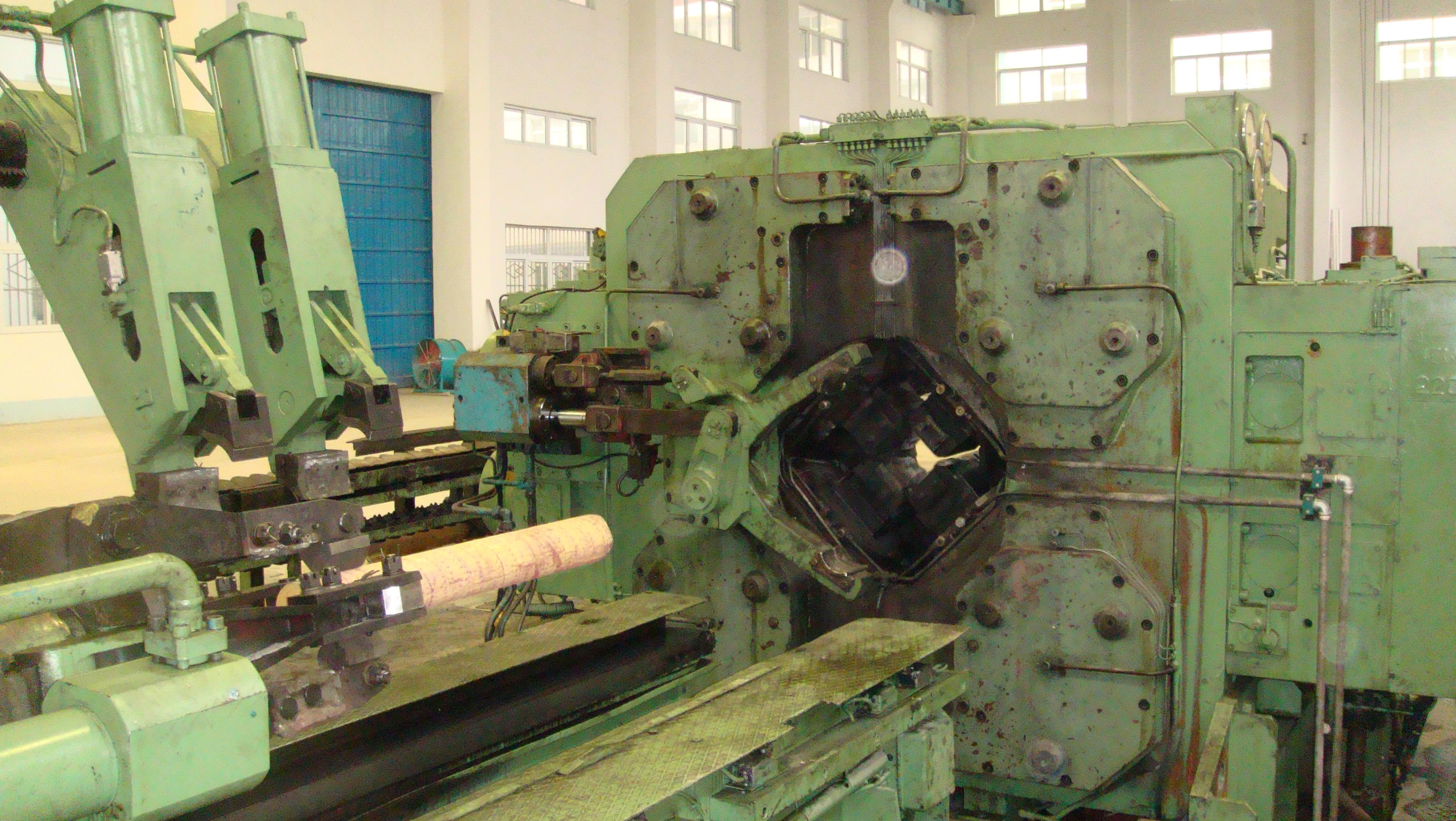

Radial forging machine

The new generation radial forging machines type RF combine the technologies of a mechanical eccentric press with that of a hydraulic press.

The proven CMICO developed machine control system and software provides great flexibility and ease of use. Inputting the dimensional, technological & work piece data and tooling data, will allow the automatic generation of a CNC forging program, also showing area reductions, feed rates, stroke rate of forging tools (variable on the new type RF) within the machine parameters and forging temperatures. Extensive finite element method simulations of the process in view of re-crystallization and grain refinement, as well as strain, stress and temperature distribution at each forging stroke have been taken into account.

Downloading the CNC forging programs from an external computer to the Radial forger control system memory will provide automatic operation, and ensures

100% repeatability of forging process

Superior resultant material properties

High output rates with close tolerances and best surface finish

Accurate workplace temperature control enables long bars to be forged within narrowest temperature windows

Highest operational flexibility

The basic concept of the new type RF Radial forger is the same as the original SX type in that there are 4 dies operating radially on the work piece at 90 to each other. The machine has the characteristics of full press load at any stroke position, due to the flywheel effect, very short contact time, and precise tool motion.

In the new Radial forger RF however, each of the four rams with forging tools is designed with an integrated hydraulic cylinder for adjustment of the forging dimension, which additionally has the function for variable stroke rates as well as for overload protection. This new machine concept is enlarging the technological possibilities to adapt the forging process for optimum results in addition to simplifying mechanics.

Forging force: 5-16MN
